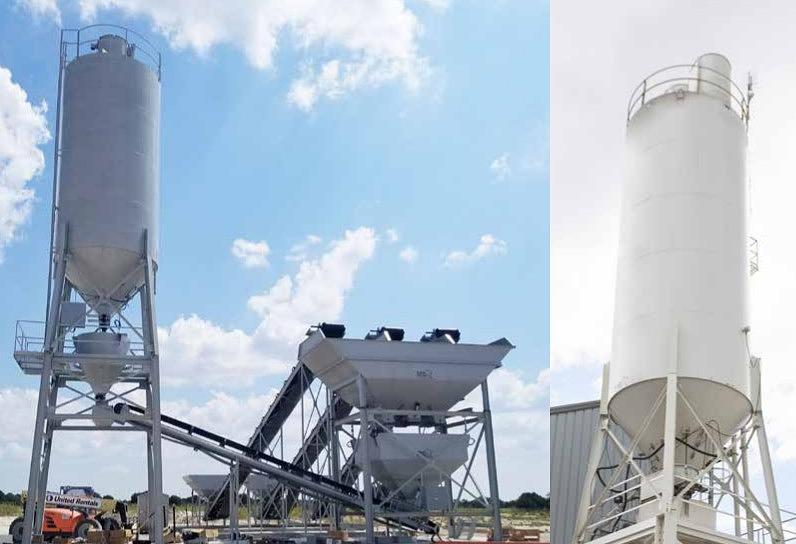

BELGRADE STEEL TANK - STATIONARY CEMENT AND FLY ASH SILOS


Stationary Silo Standard Equipment:


  • Leg w/3’6″ clearance under discharge
  • Outside Ladder w/Cage
  • Full Railing
  • 4″ Blower Pipe w/adapter (Optional 5″ Blower Pipe)
  • 150 Sq. Ft. Dust House w/air Vibrator & Pop-off valve (Option 225 Sq. Ft.)
  • Vibrator Air Line
  • Manhole
  • External Air Pads with manifold
  • Standard Jam Gates
  • Sand Blast, Primed and Painted Standard Colors white-grey-tan-cat yellow

Brrl A B C D Wt.

185 8’6″ 12’0″ 8’6″ 7’8″ 6000#

270 8’6″ 18’0″ 8’6″ 7’8″ 7000#

350 8’6″ 24’0″ 8’6″ 7’8″ 9000#

450 10’8″ 18’0″ 9’10” 9’10” 10000#

550 10’8″ 24’0″ 9’10” 9’10” 13000#

700 12″0″ 24’0″ 10’6″ 11’0″ 15000#

900 12″0″ 30’0″ 10’6″ 11’0″ 17000#

1050 12″0″ 36’0″ 10’6″ 11’0″ 21000#

1200 12″0″ 42’0″ 10’6″ 11’0″ 24000#


Belgrade Double Wall Split Silos 50/50 or 33/66


Standard Equipment


  • Leg w/3’6″ clearance under discharge
  • Outside Ladder w/Cage
  • Full Railing
  • 2-4″ Blower Pipe w/alum. adapter (Optional 5″ Blower Pipe)
  • 2-150 Sq. Ft. Dust House w/air vibrator & pop-off valves (Optional 225 Sq. Ft.)
  • 2 – Manholes
  • 12 External Air Pads with manifold
  • Standard Jam Gates
  • Sand Blast, Primed and Painted Standard Colors white-grey-tan-cat yellow


Brrl A B C D Wt.

700 12’0″ 24’0″ 10’6″ 11’0″ 21500#

850 12’0″ 30’0″ 10’6″ 11’0″ 25000#

1000 12’0″ 36’0″ 10’6″ 11’0″ 30000#

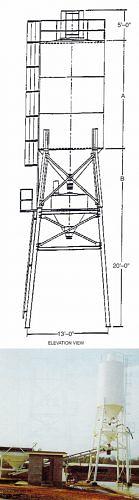

Belgrade Batching Silos


Standard Equipment


  • Leg w/3’6″ clearance under discharge
  • Outside Ladder with Cage
  • Full Railing
  • Standard Jam Gates
  • 4″ Blower Pipe w/alum. adapter
  • 150 Sq. Ft. Dust House w/air vibrator & pop-off valve
  • Manholes
  • 8 External Air Pads with manifold
  • Sand Blast, Primed and Painted Standard Colors white-grey-tan-cat yellow

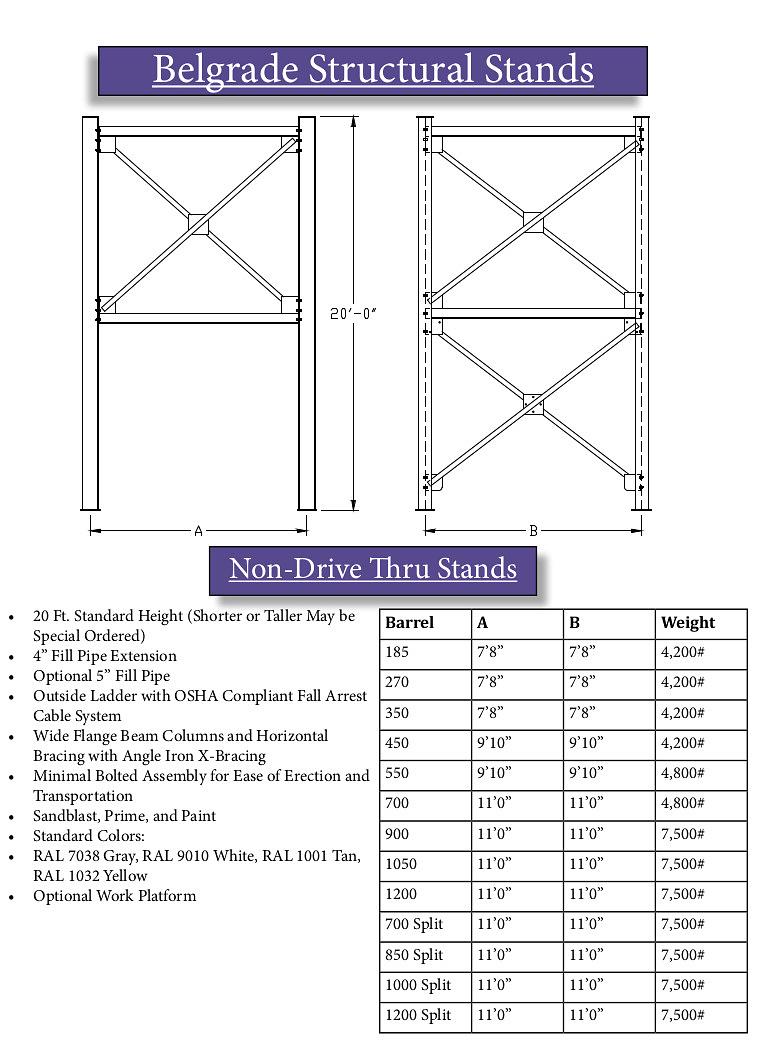

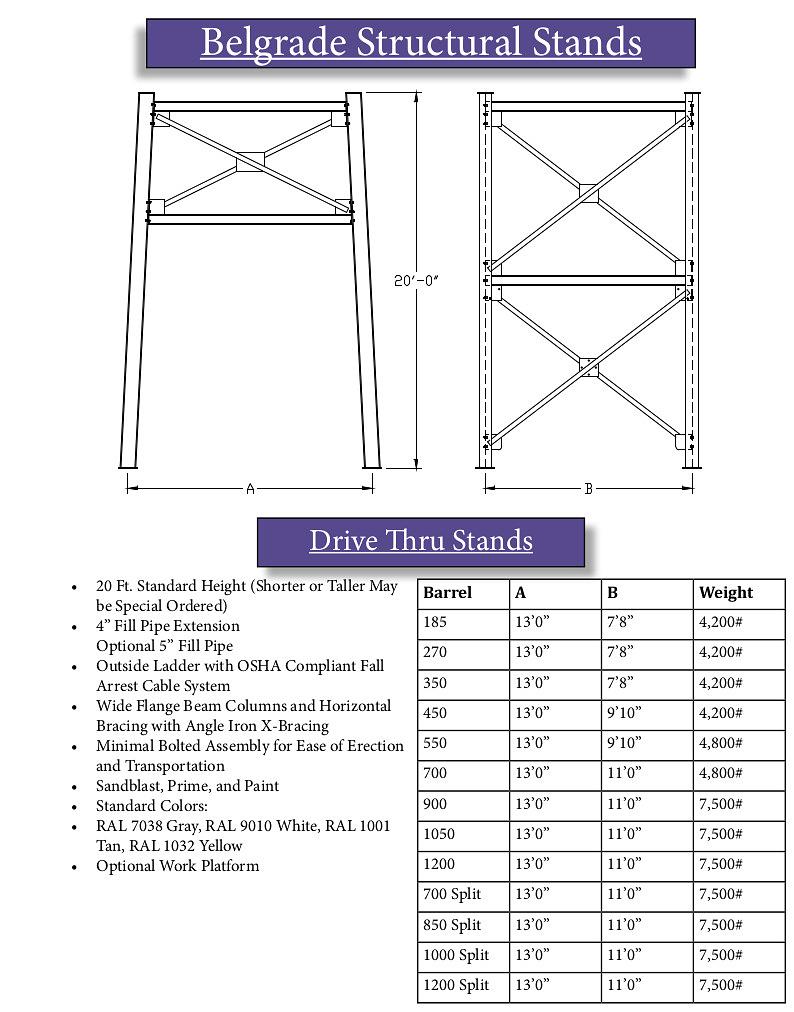

  • Structural Stand with All Standard Equipment:
  • 20′ Tall Structure with Extension Blower Pipe(s)
  • Ladder Lading and Ladder with Cage
  • Work Platform
  • 10 Yard Cement Batching Package with all Standard Equipment:
  • Scale Hopper with Air Vibrator
  • Dust Vent
  • Hanger
  • Weigh System with Digital Indicator
  • 2-10″ Butterfly Values with Air Actuators and Boot Sock
  • Optional: 12 Yard Cement Batching

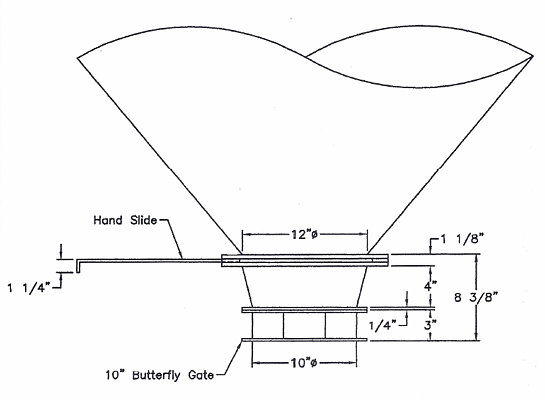

Jamgate Assembly
