BELGRADE STEEL TANK - PORTABLE CEMENT SILOS

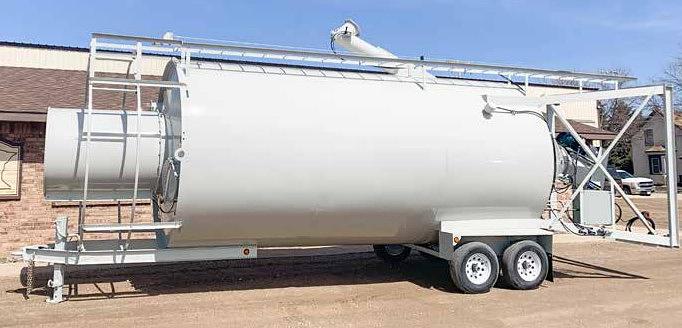

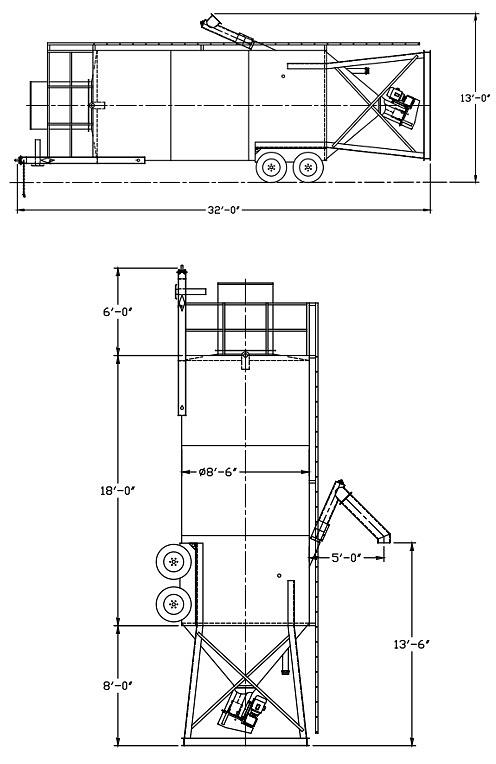

270 Barrel Portable Silo

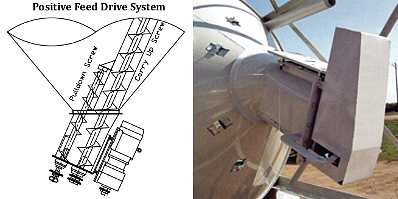

Positive Feed Drive System



Standard Equipment


  • 8’6″ Dia. x 31′-0″ Height
  • Positive Feed Drive
  • 7″ Dia. Screw x 17′
  • 5 HP Motor and Gear Box Drive
  • Heavy Duty Dual Axle Trailer and Tires
  • Electric Brakes and Light Package
  • 150 Sq. Ft. Bag Area Dust House with Air Vibrator
  • Trailer Jack
  • Wt. 8,500#
  • 13′-6″ Auger Discharge Height


Standard Options:


  • Available with 225 Sq. Ft. Dust House
  • Bin Level Indicators
  • Leg Extension Package
  • Upgrade to 9″ to 12″ Screw
  • Gas Motor Available on 7″ Screw Auger Only
  • Single Phase Motor


Standard Sizes Available:


  • Single Compartment Round Portable Silo Sizes: 270 Barrel, 350 Barrel, 450 Barrel, 550 Barrel, 700 Barrel, 900 Barrel, 1050 Barrel, 1200 Barrel
  • Split Compartment Round Portable Silo Sizes: 500Bbl, 700Bbl, 850Bbl

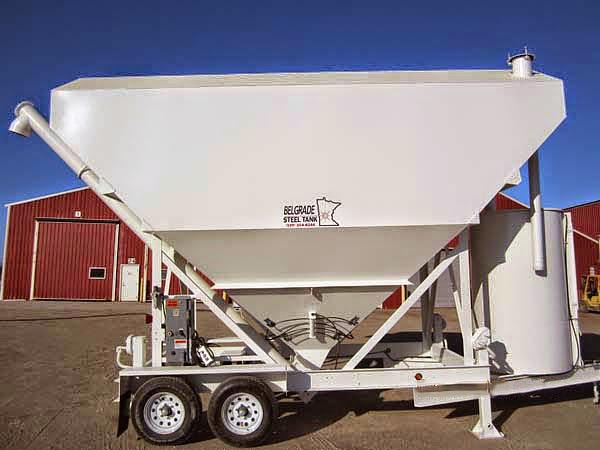

200 Barrel Low Profile Cement Silo



Standard Equipment


  • 200 Barrel Capacity/800 Cu. Ft.
  • Legal 8’6″ Wide x Legal 13’6″ Tall
  • 26′ Over All Length
  • 7″ Discharge Screw Standard (Avail. w/9″)
  • 5 HP Gear Box Drive (Optional: Gas Engine Drive)
  • Manual Slide Gate
  • Two 6,000# Axles w/Wheels and Tires
  • Electric Brakes and Lights
  • Belle 150 Sq. Ft. Dust House w/Air Vibrator Standard
  • WT. 8,000#

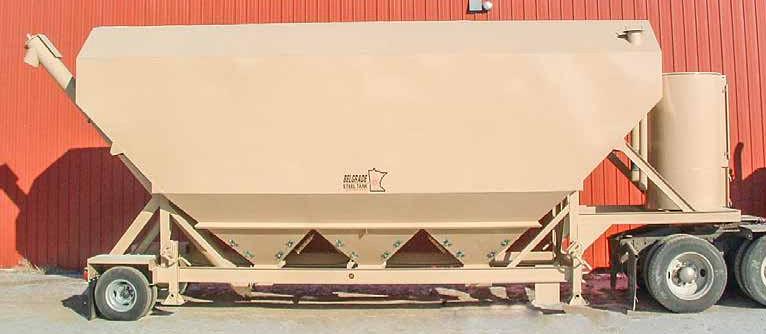

300 Barrel Low Profile Cement Silo



Standard Equipment


  • 300 Barrel Capacity/1200 Cu. Ft.
  • Legal 8’6″ Wide x Legal 13’6″ Tall
  • 38′ Over All Length
  • 7″ Cross Screw, 9″ Carry Up Screw
  • 5 HP and 10 HP Gear Box Drive
  • Jamgate on Each Hopper
  • 10,000# Axles with Dual Wheels and Electric Brakes
  • 5th Wheel Trailer and Lights
  • Belle 150 Sq. Ft. Dust House
  • WT. 15,000#
