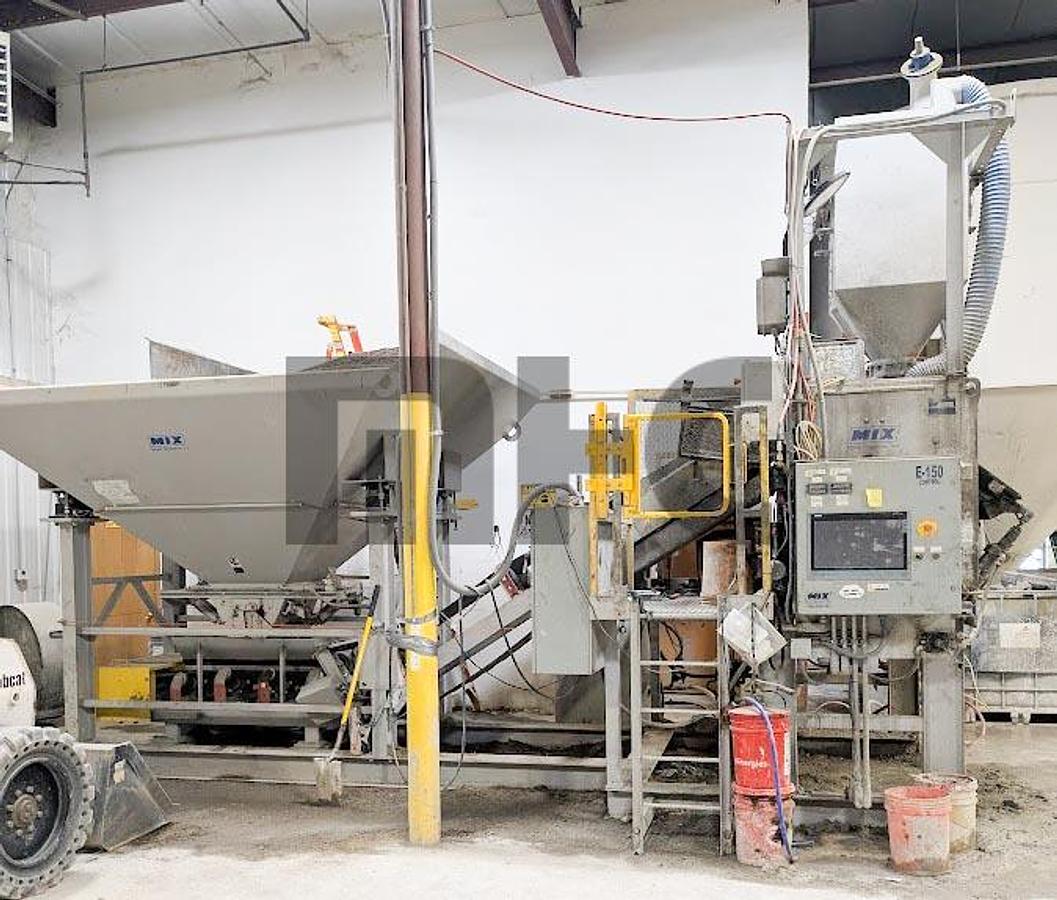

2018 Mixer Systems Model 21 Precast Concrete Batch Plant

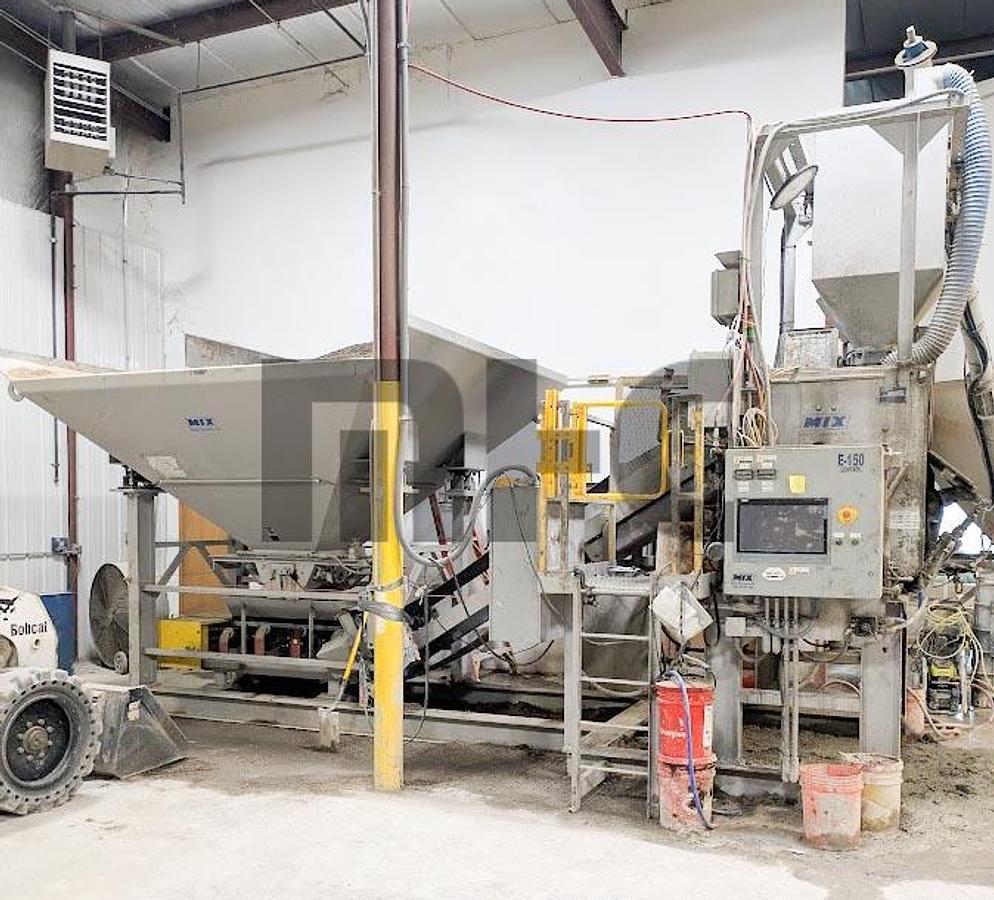

Mixer Systems Model 21 Precast Concrete Batch Plant:

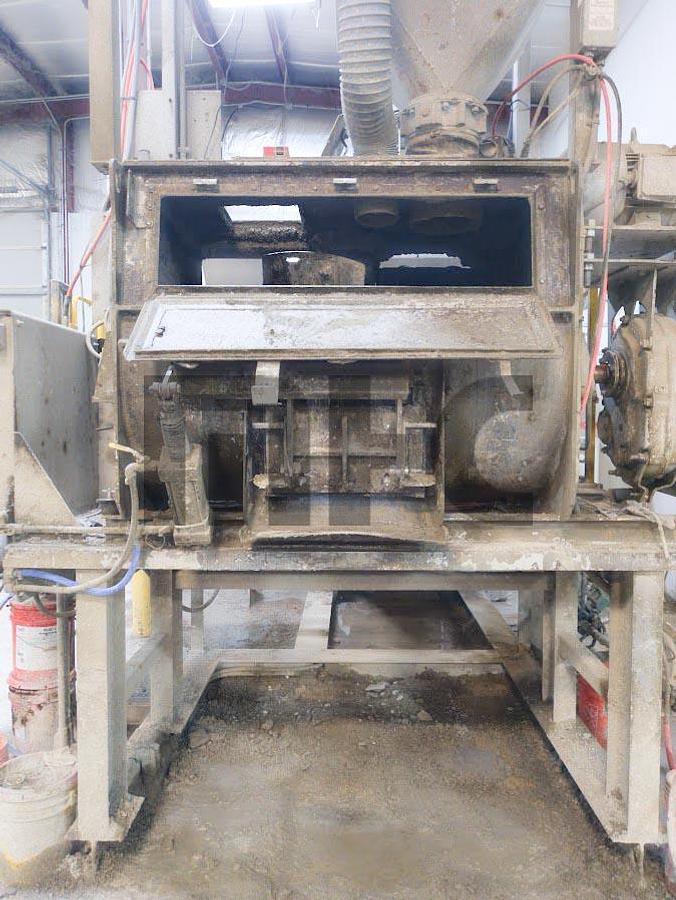

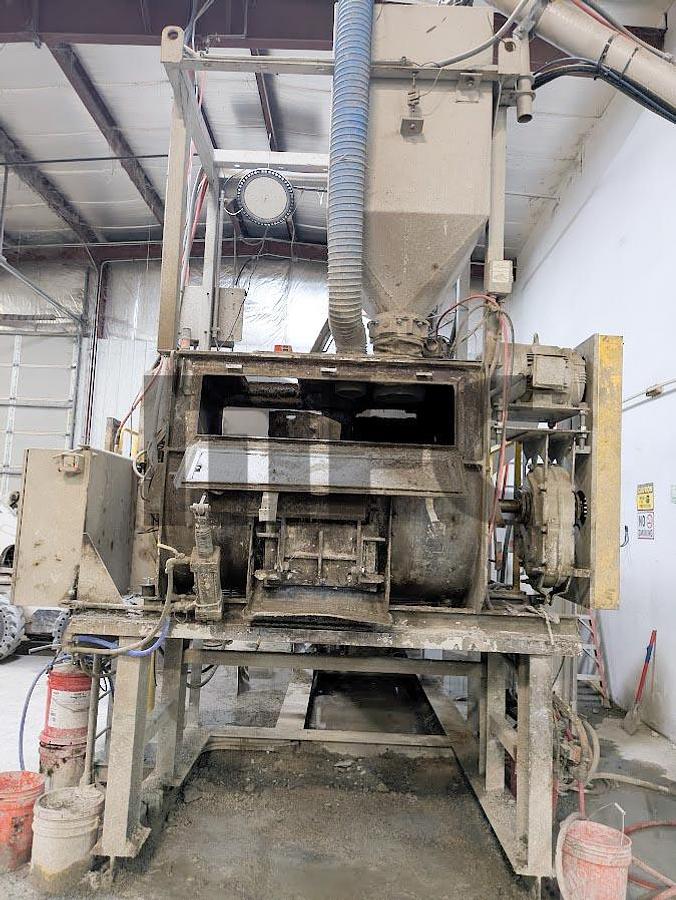

• Model 21 Horizontal Paddle Mixer
• 21 cu.ft. or 1,800 LBS input capacity
• 25 Hp, 230/460V, 3 PH, 60HZ, 1800 RPM, TEFC Electric Motor
• Lube System
• Replaceable Cast Ni-Hard Tank Liners (550 Brinell Hardness)
• Mixer Stand with Clean Out Platform

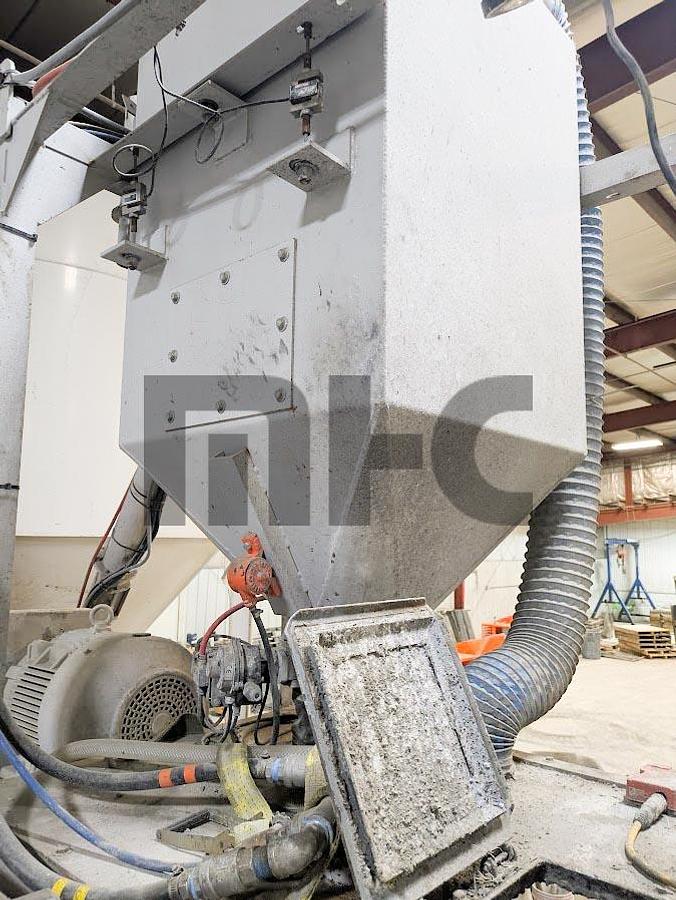

• Weigh Batcher
• 21 cu.ft. capacity weigh batcher
• 3/16" thick steel plate & Limit Switch
• Suspended above Mixer by Load Cells
• Vibratory material flow
• Vent Hose connection from top
• Water Meter
• 1" Badger Water Meter

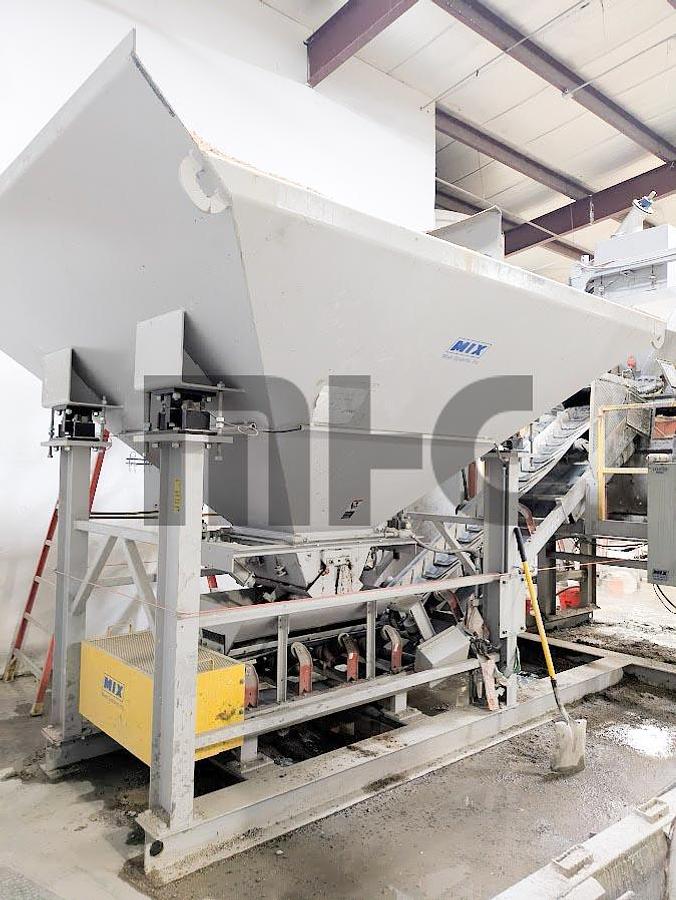

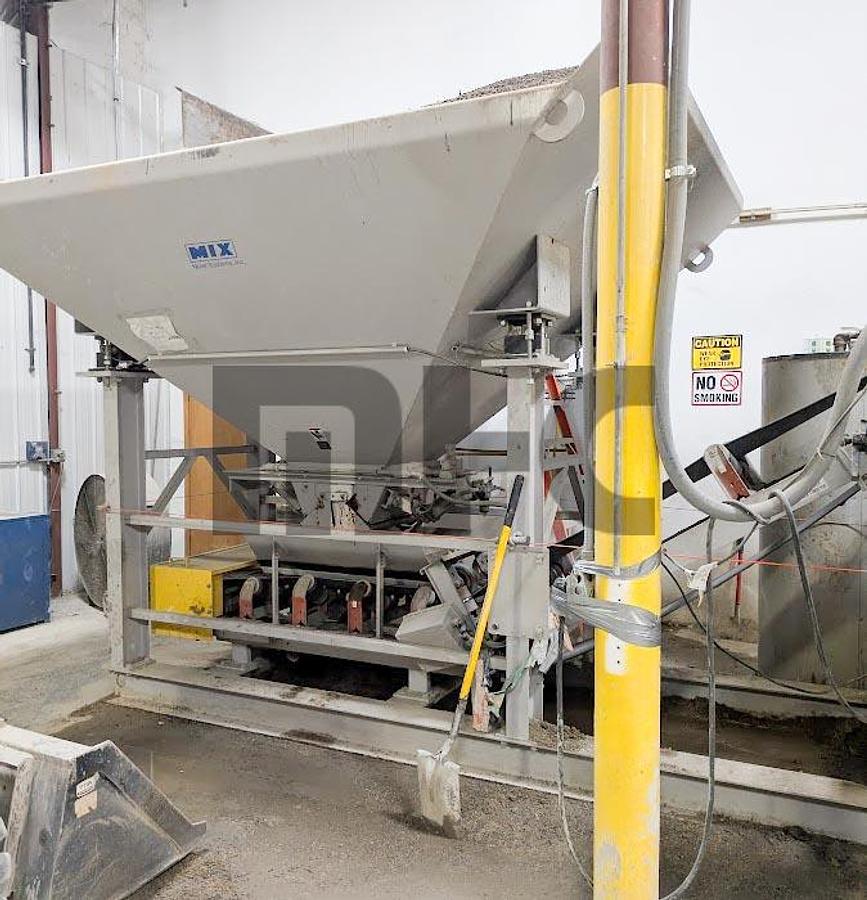

• Aggregate Storage Bin:
• 5 Ton capacity rated at 100 lb/cu.ft.
• 10X10 open top charge area
• 1/4" thick steel cone section

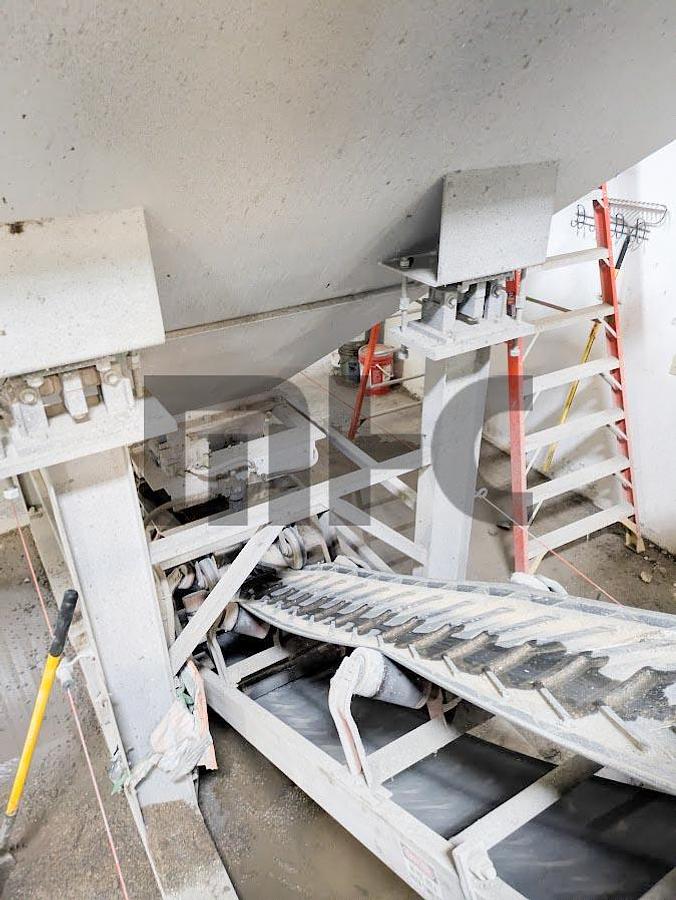

• Load cells for accurate decumulative weighting of materials
• Double Clamshell discharge gate
• Skid Mount, Starter Panel and Pre-wired

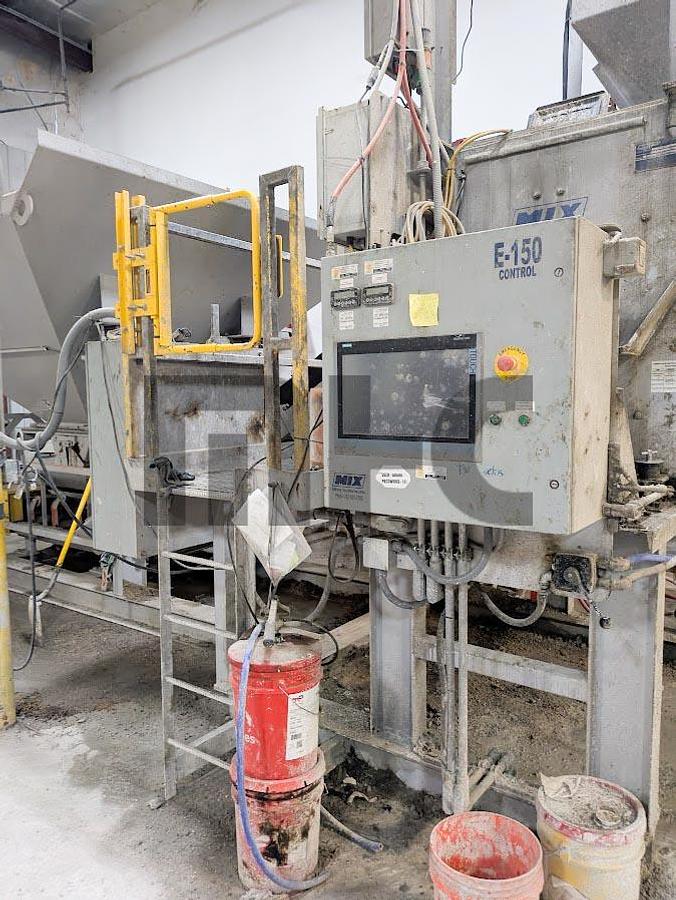

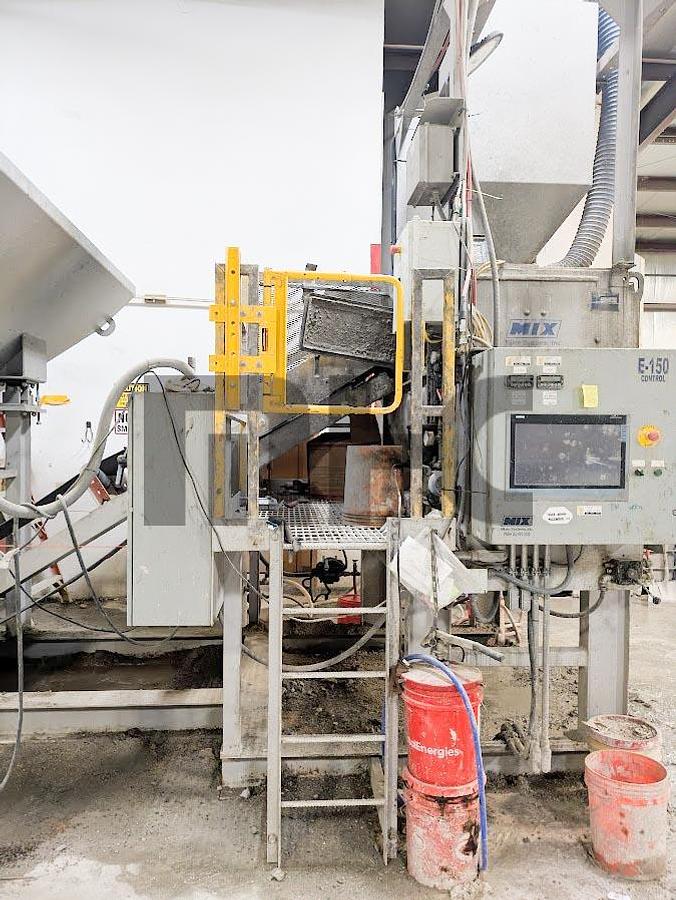

• Model E-150 Batch Control System
• 1 Batching of aggregates
• Fully automatic sequential batching of materials
• Scales maximum control utilizes Micro PLC, up to (9)
• One touch button to begin automatic batching
• One switch for pre-batching cements and admix
• 50 different mix designs
• Auto moisture control (with Hydronix Bin Probe)
• Remote access module for troubleshooting

Notes:

1. Cement Silo and Material Conveying Auger are NOT included.
2. Seller has the ability to load
3. Plant is in operating condition
4. Inquire for drawings and additional information
