2026 Belgrade 4 Compartment Stationary Concrete Batch Plant

2026 Belgrade 4 Compartment Stationary Concrete Batch Plant:

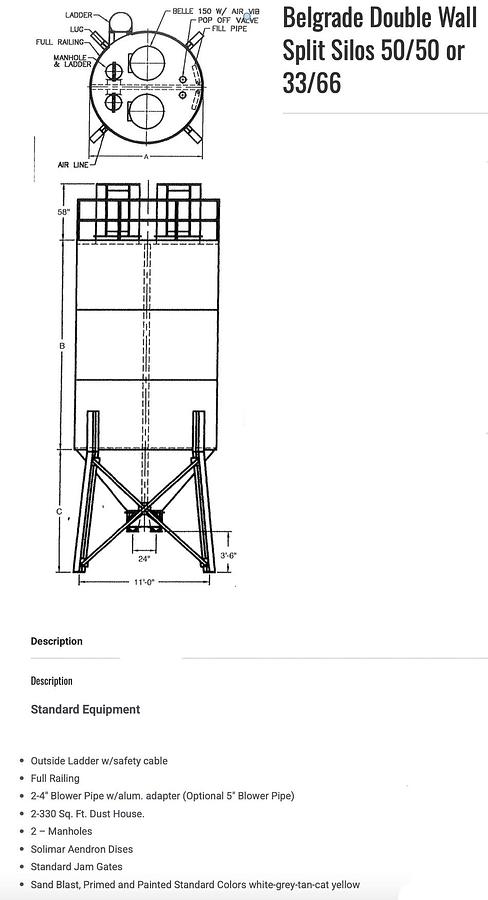

• Belgrade 700 Bbl. Split Silo with all standard equipment: (33/66 Split Design) NET Legs with 3'-8 clearance under discharge, (2) jamgates, outside ladder with fall arrest cable system, full railing, (2) 4" dia. fill pipes with aluminum adapter, (2) 1/2" air lines, (2) 1/2" electrical conduits, (2) pop off valves,
• Add 20'-0 DT Structural Stand with Extension Pipe and Ladder with Cable
• Add Work Platform with Full Railing
• Add (2 each) High Level Indicator with Light Package
• Add (2 each) Low Level Indicator with Light Package
• Add (2 each) 4" Anti-Overfill Pinch Valve Package

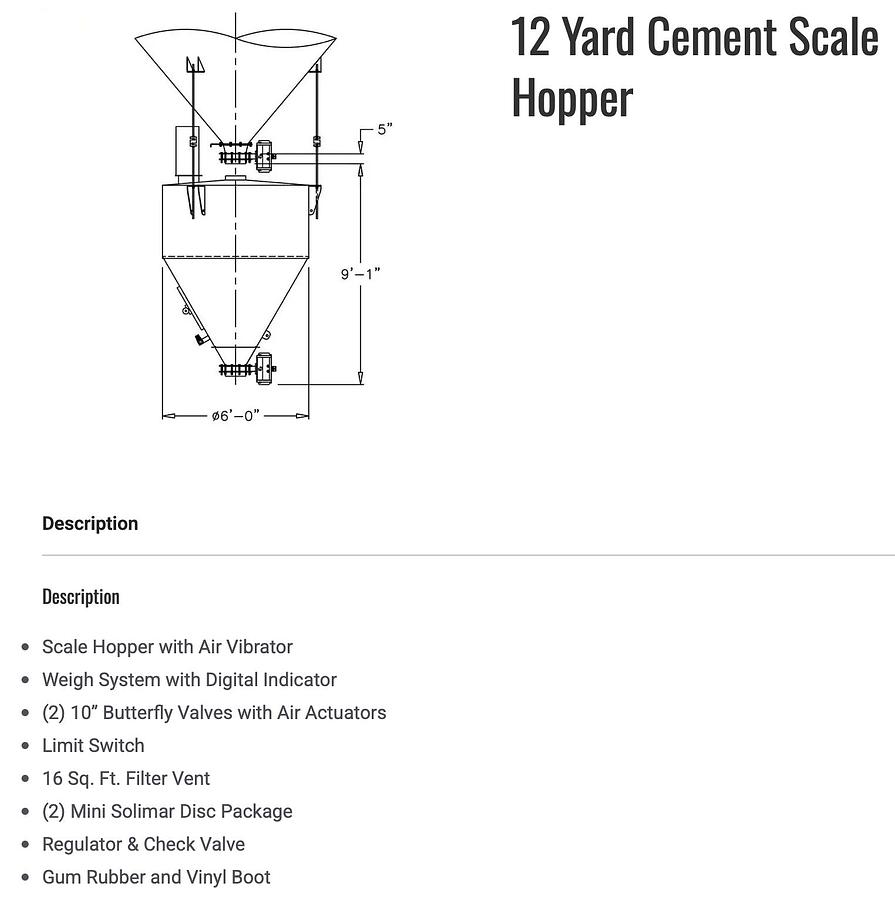

• 12 Yd Cement Batching Package with all standard equipment: Scale hopper with air vibrator, Solimar vibratory discs, dust vent, hanger brackets, weigh system with digital indicator, (2) 10" butterfly valves with air actuators, limit switch, vinyl and gum rubber boot
• Add Additional 10" Butterfly Valve with Air Actuator & Loose 10" ANSI Flange with Collar, Nylon / Rubber Boot Sock with Clamp & Batcher Ring with Clamp

• 180 Ton 4 Compartment Overhead Aggregate Bin with all standard equipment 1/4" on all cones and sloped walls, 3/16" on all straight walls and straight dividers, removable heap plates: 3/16" x 1'-6 high, 16" sq. aggregate gates with air cylinders, 8" beam structural stand to provide 14'-0 clearance under gates.

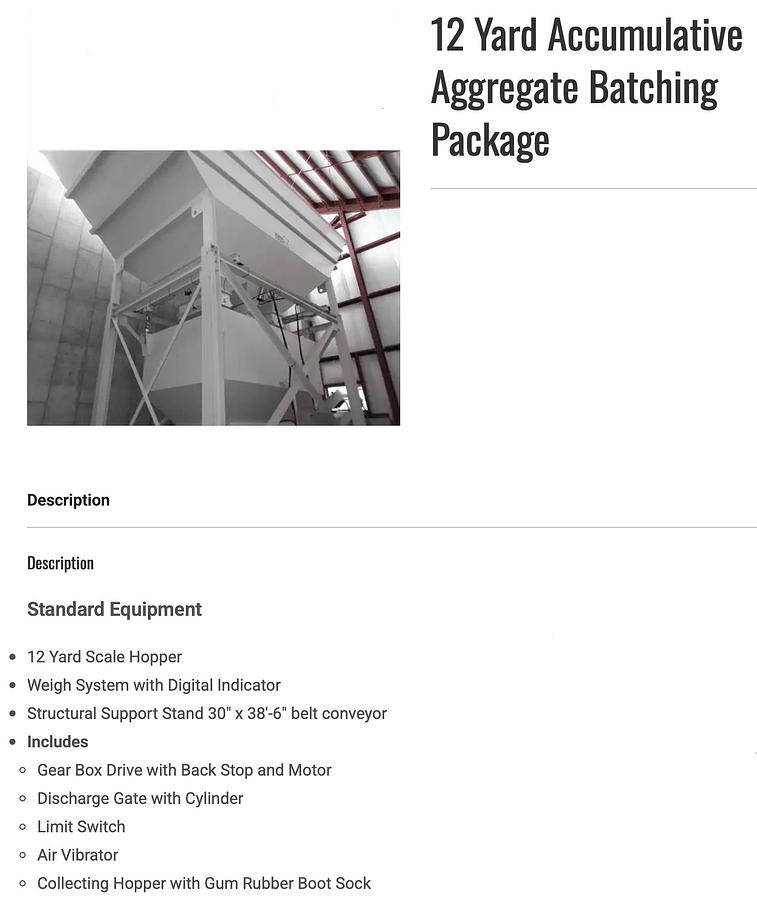

• 12 Yd Accumulative Aggregate Batching Package with all standard equipment Scale hopper, weigh system with digital indicator, support stand, 30" belt conveyor x 38'-6" long. Includes: Gear box drive with back stop and motor, clam gate with air cylinder, limit switch, air vibrator, discharge hopper with gum rubber boot sock, and torsion style belt wiper.
• Add Motor Starter Package for 10Hp 3Ph 480Volt Truck Loading Belt Conveyor
• Add Mac Valve Solenoid Panel Package (Standard BST Cement Stack) Add Mac Valve Solenoid Panel Package (Standard BST Agg Stack)
• Add Standard Push Button Control Panel Package with PC-200 Counter

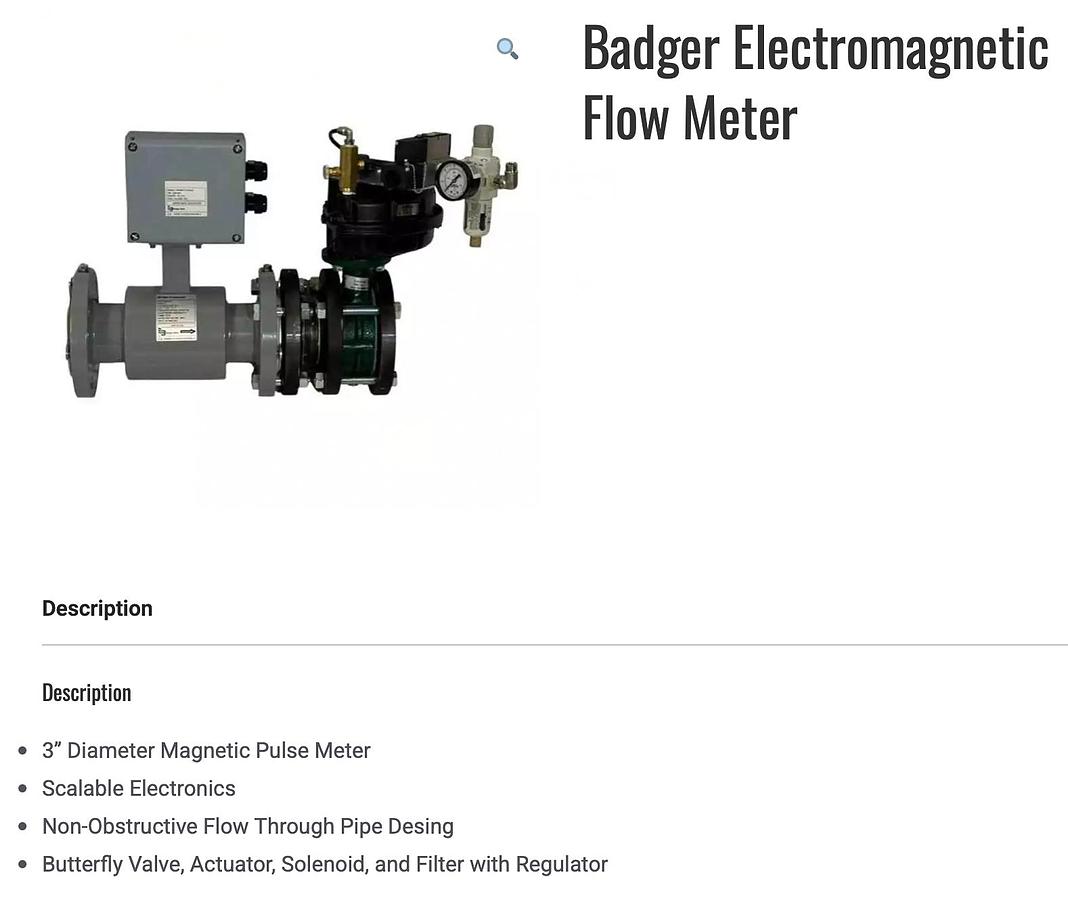

• Add 3" Badger Water Mag Meter Package
• Add 10Hp 3Ph 480Volt 120Gallon Air Compressor Package

• Engineering / Upgrades for Wind and Seismic (MN Stamp Only)
