2026 Belgrade 4 Compartment Stationary Concrete Batch Plant

2026 Belgrade 4 Compartment Stationary Concrete Batch Plant:

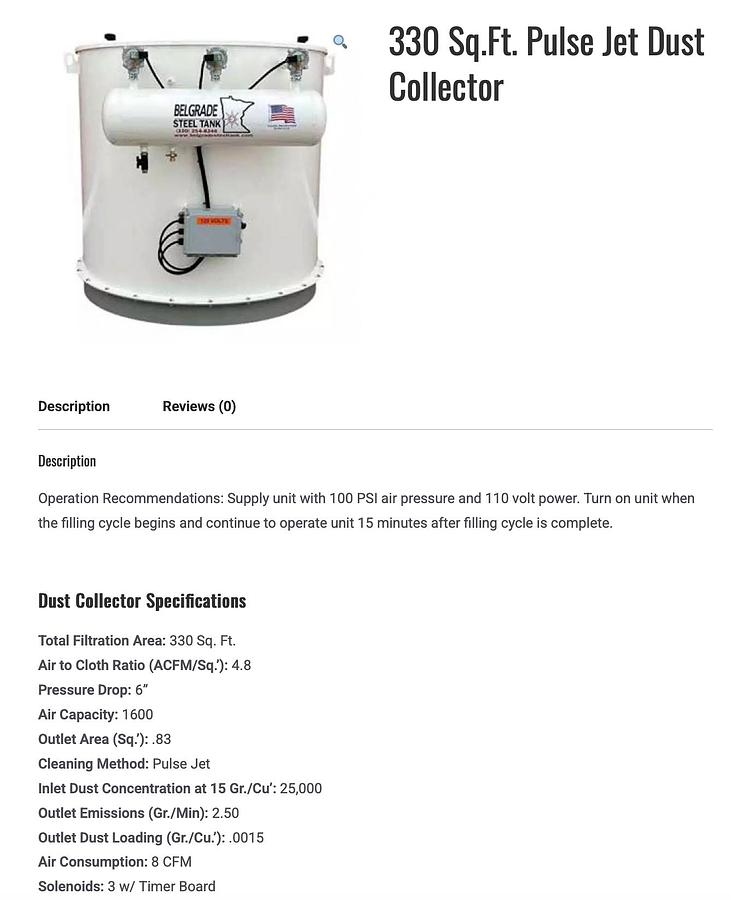

• Belgrade 550 Bbl. Silo with all standard equipment (12'-0" Diameter Design) NET Legs with 3'-8 clearance under discharge, jamgate, outside ladder with fall arrest cable system, full railing, 4" dia. fill pipe with aluminum adapter, 330 sq ft pulse jet dustcollector, 1/2" air line, 1/2" electrical conduit, pop off valve, (2)manholes, Solimar vibratory discs, sand blast, prime and paint - White, Gray, Tan, Yellow
• Add 20'-0 DT Structural Stand with Extension Pipe and Ladder with Cable Add Work Platform with Full Railing
• Add High Level Indicator with Light Package
• Add Low Level Indicator with Light Package

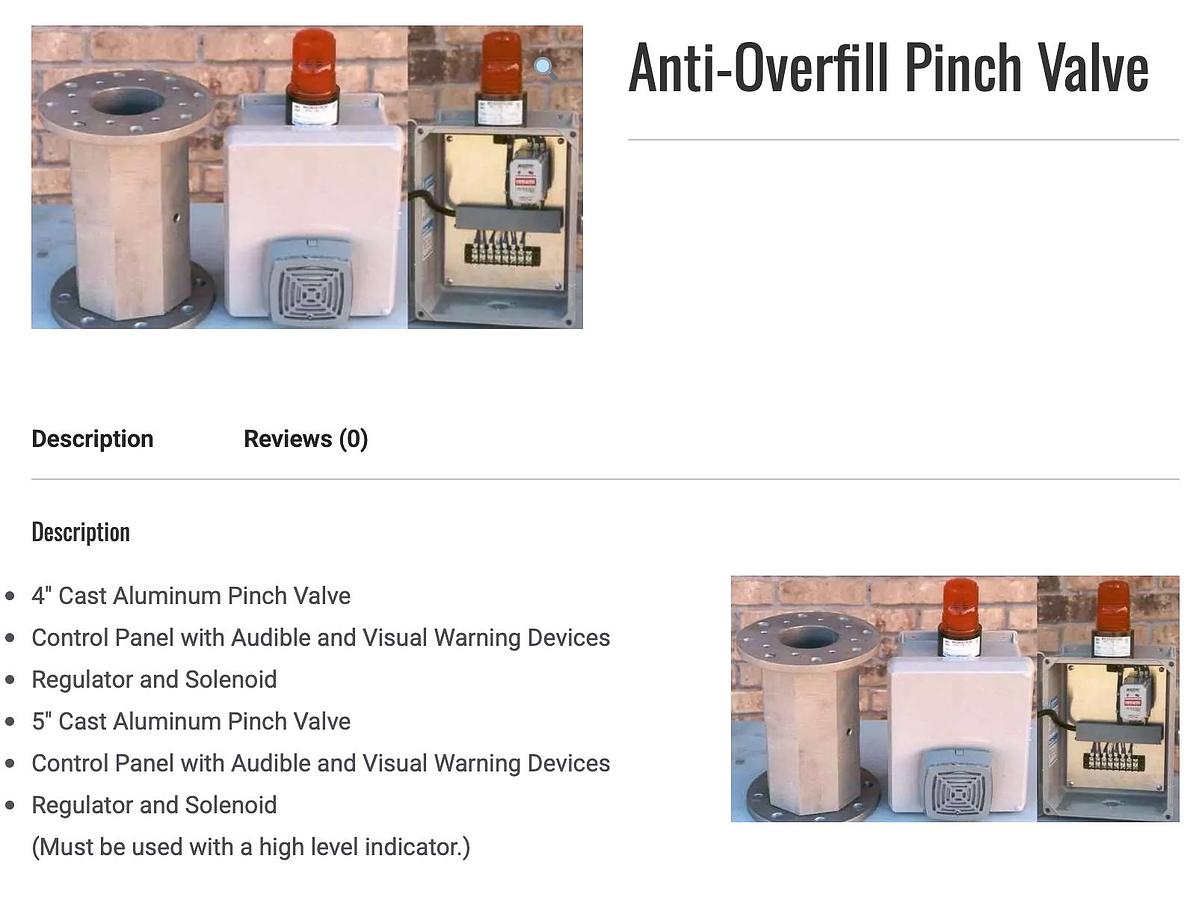

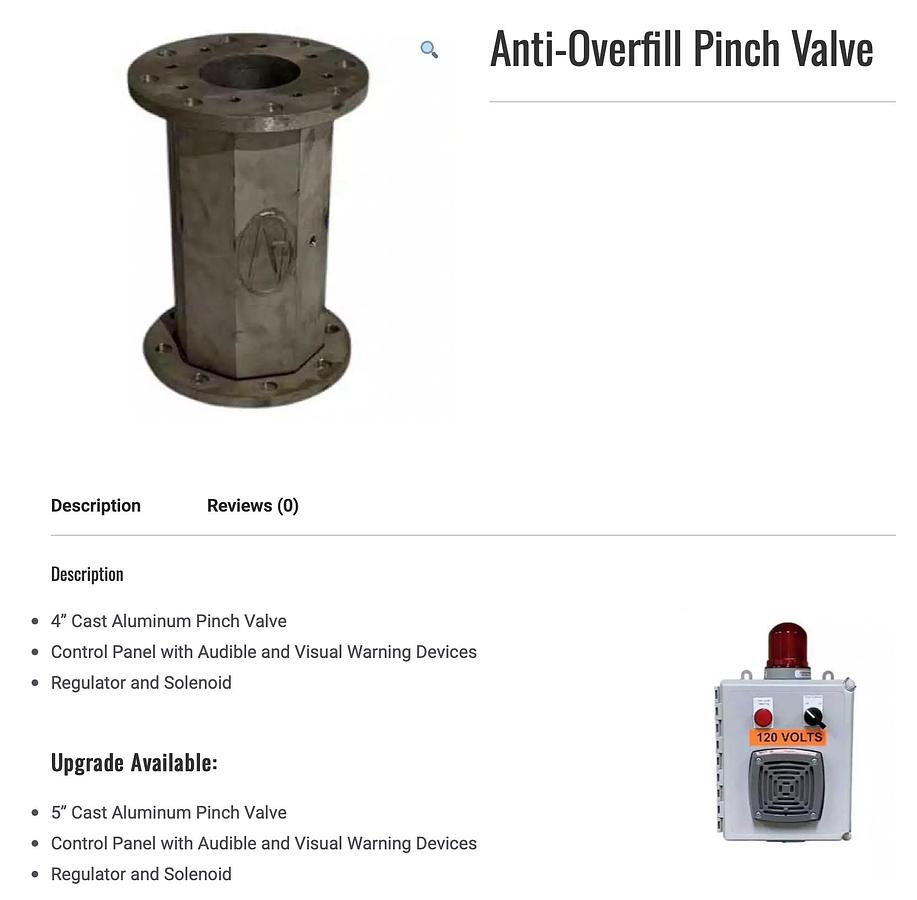

• Add 4" Anti-Overfill Pinch Valve Package

• 12 Yd Cement Batching Package with all standard equipment: Scale hopper with air vibrator, Solimar vibratory discs, dust vent, hanger brackets, weigh system with digital indicator, (2) 10" butterfly valves with air actuators, limit switch, vinyl and gum rubber boot

• Belgrade 550 Bbl. Silo with all standard equipment (12'-0" Diameter Design) Legs with 3'-8 clearance under discharge, jamgate, outside ladder with fall arrest cable system, full railing, 4" dia. fill pipe with aluminum adapter, 330 sq ft pulse jet dust collector, 1/2" air line, 1/2" electrical conduit, pop off valve, (2)manholes, Solimar vibratory discs, sand blast, prime and paint - White, Gray, Tan, Yellow
• Add 20'-0 NDT Structural Stand with Extension Pipe and Ladder with Cable
• Add Work Platform with Full Railing
• Add High Level Indicator with Light Package
• Add Low Level Indicator with Light Package
• Add 4" Anti-Overfill Pinch Valve Package
• Deduct Stand Ladder / Design Work Platforms to Butt Together
• Deduct Silo Ladder / Add Crossover Platform
• Add 10" Butterfly Valve with Air Actuator & Loose 10" ANSI Flange
• Add 10" x 15'-0" Long Auger with 10Hp 3Ph 480Volt Electric Motor & Gearbox Drive Package, Nylon / Rubber Boot Sock with Clamp & Batcher Ring with Clamp

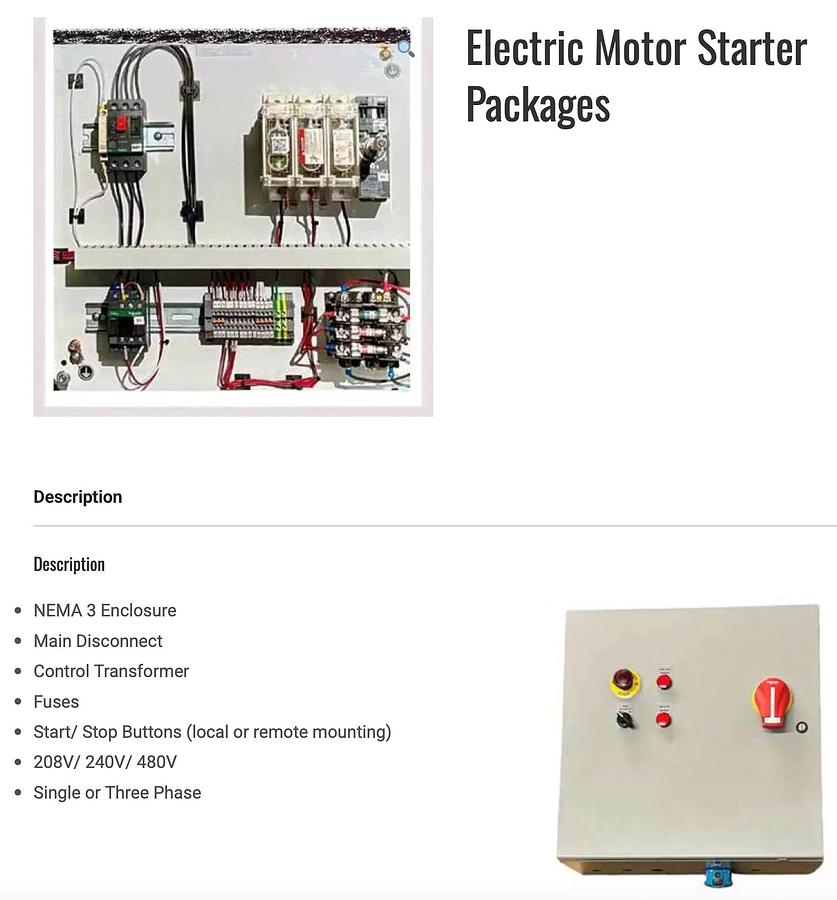

• Add Motor Starter Package for 10Hp 3Ph 480Volt Auger Motor

• 180 Ton 4 Compartment Overhead Aggregate Bin with all standard equipment 1/4" on all cones and sloped walls, 3/16" on all straight walls and straight dividers, removable heap plates: 3/16" x 1'-6 high, 16" sq. aggregate gates with air cylinders, 8" beam structural stand to provide 14'-0 clearance under gates.

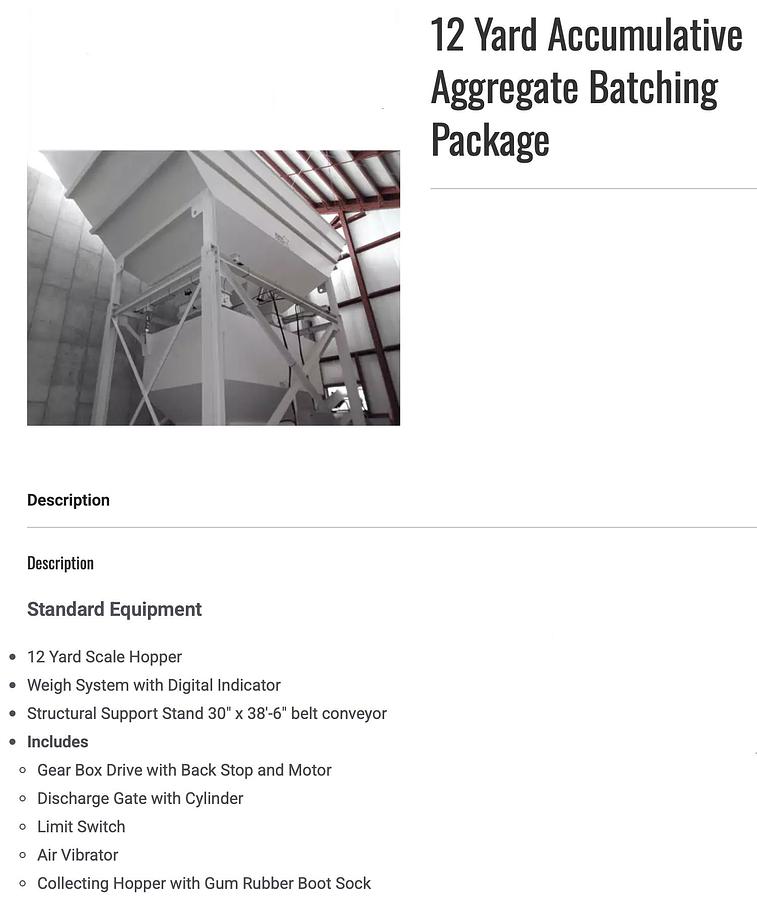

• 12 Yd Accumulative Aggregate Batching Package with all standard equipment Scale hopper, weigh system with digital indicator, support stand, 30" belt conveyor x 38'-6" long. Includes: Gear box drive with back stop and motor, clam gate with air cylinder, limit switch, air vibrator, discharge hopper with gum rubber boot sock, and torsion style belt wiper.
• Add Motor Starter Package for 10Hp 3Ph 480Volt Truck Loading Belt Conveyor

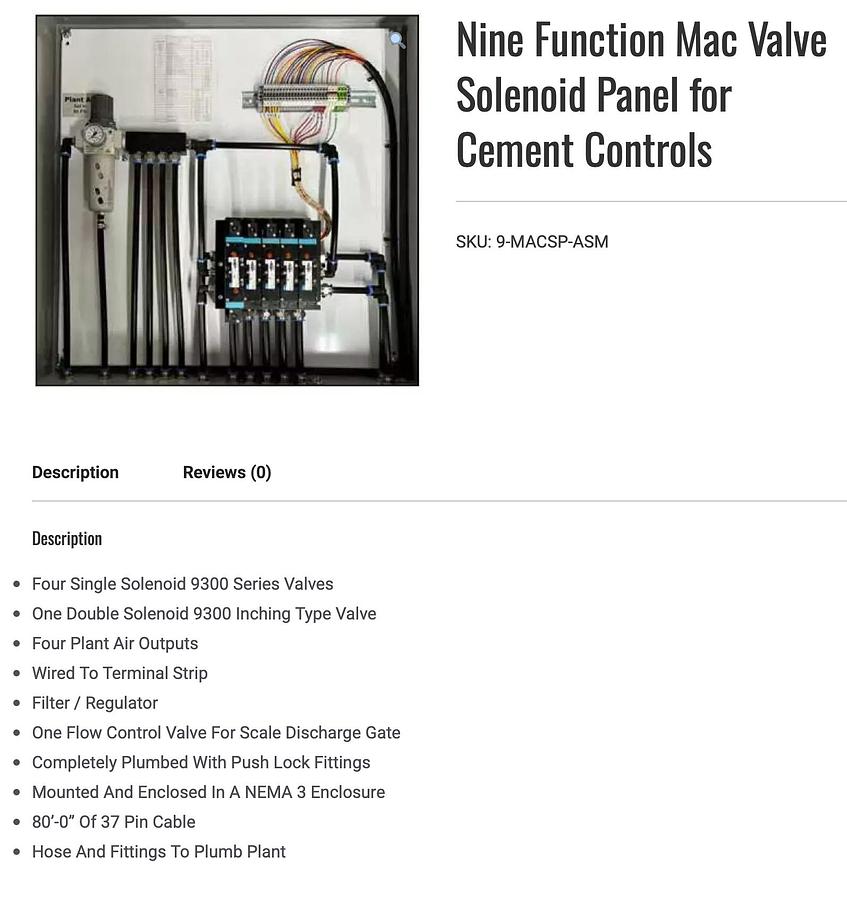

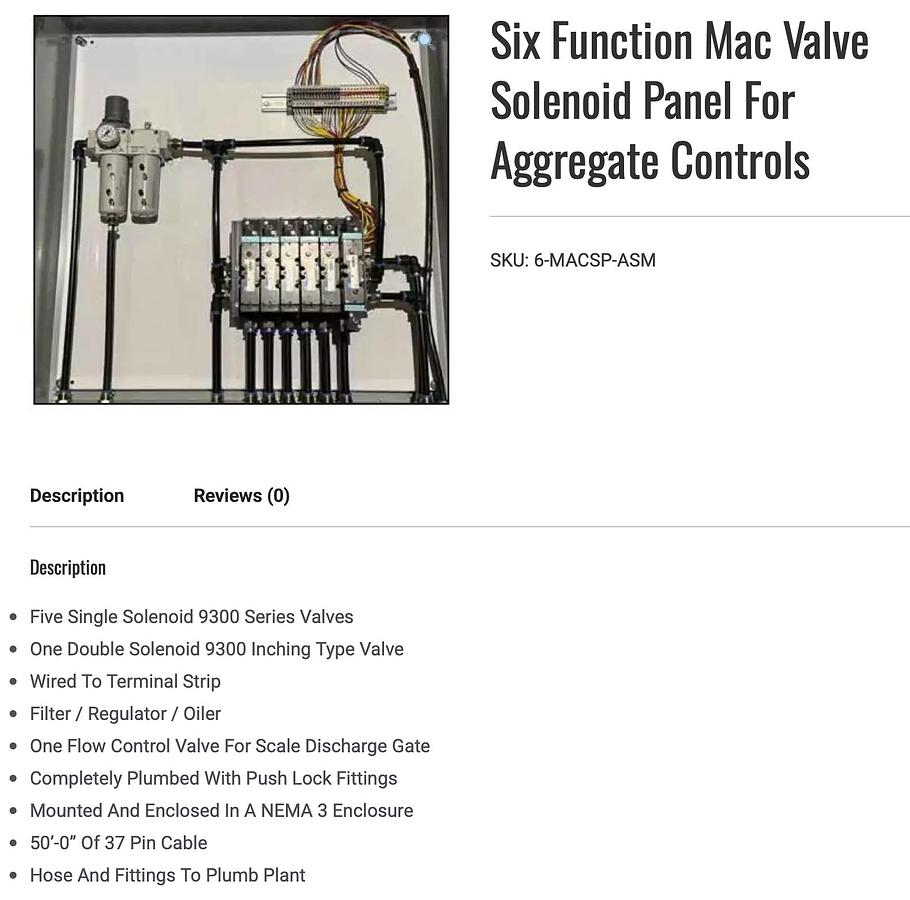

• Add Mac Valve Solenoid Panel Package (Standard BST Cement Stack) Add Mac Valve Solenoid Panel Package (Standard BST Agg Stack)

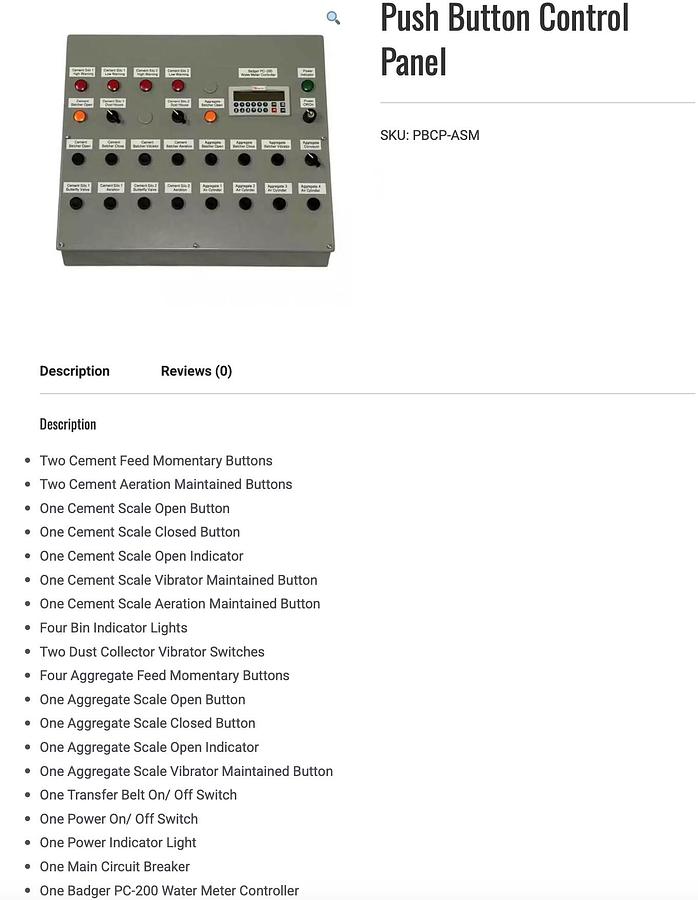

• Add Standard Push Button Control Panel Package with PC-200 Counter

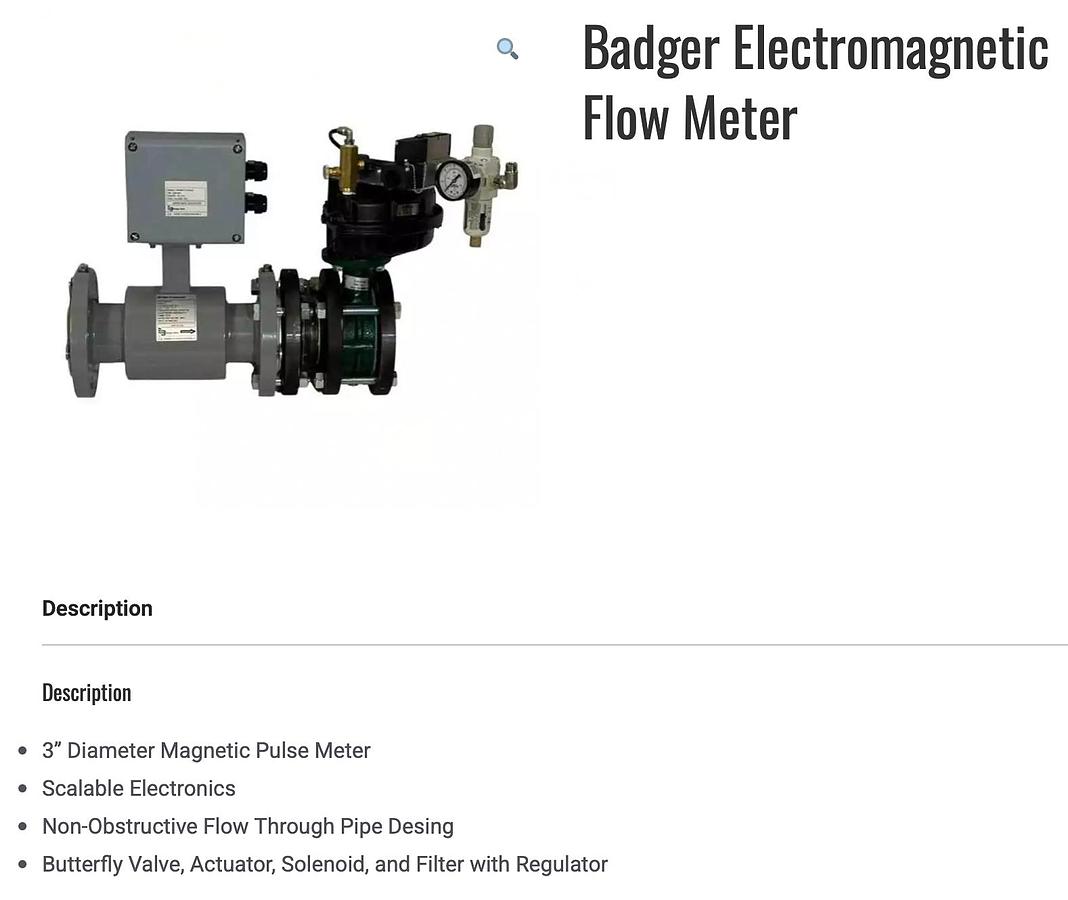

• Add 3" Badger Water Mag Meter Package

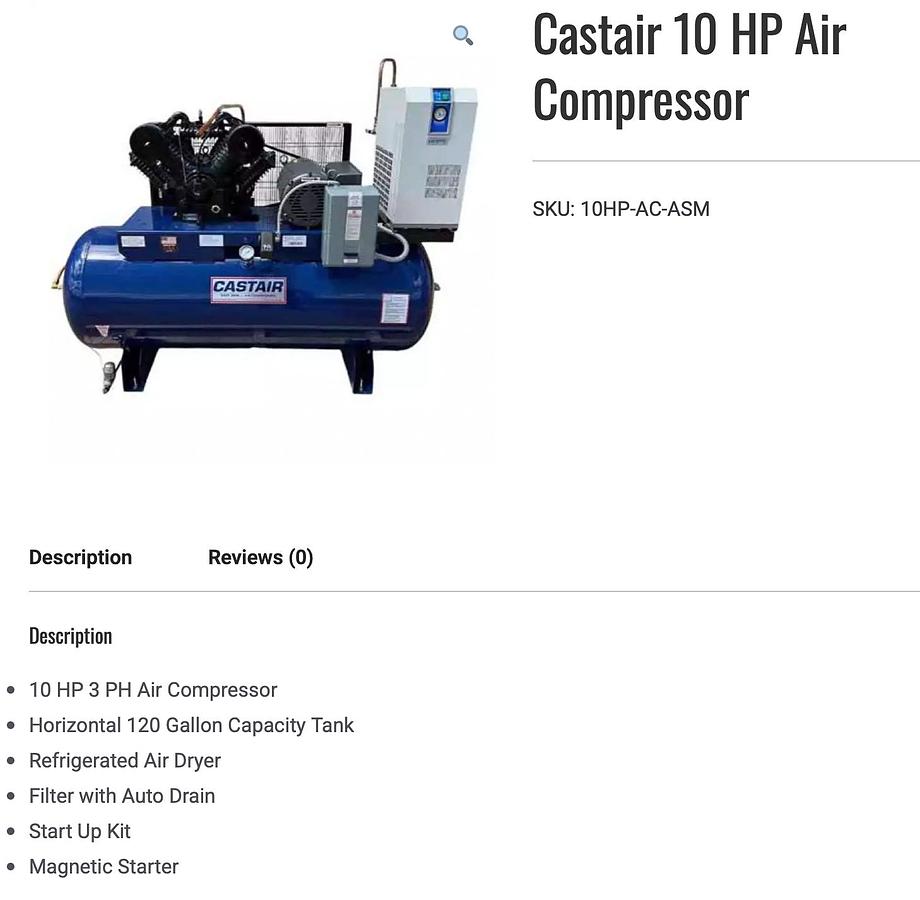

• Add 10Hp 3Ph 480Volt 120Gallon Air Compressor Package

• Engineering / Upgrades for Wind and Seismic (MN Stamp Only)

OPTIONS:

• 5" Fill Line and Anti-overfill System
• Single Compartment Silo up to 1200 Barrel or 225 Ton Capacity
• Split Compartment Silo up to 1200 Barrel or 225 Ton Capacity. 1/3-2/3 Split or 1/2-1/2 Split
• AR Liners for Sloped Walls of Aggregate Bins and Aggregate Batcher
• Engineering/Upgrades for Wind and Seismic (MN Stamp Only)
