2026 Radial Stacker (Multiple Sizes Available)

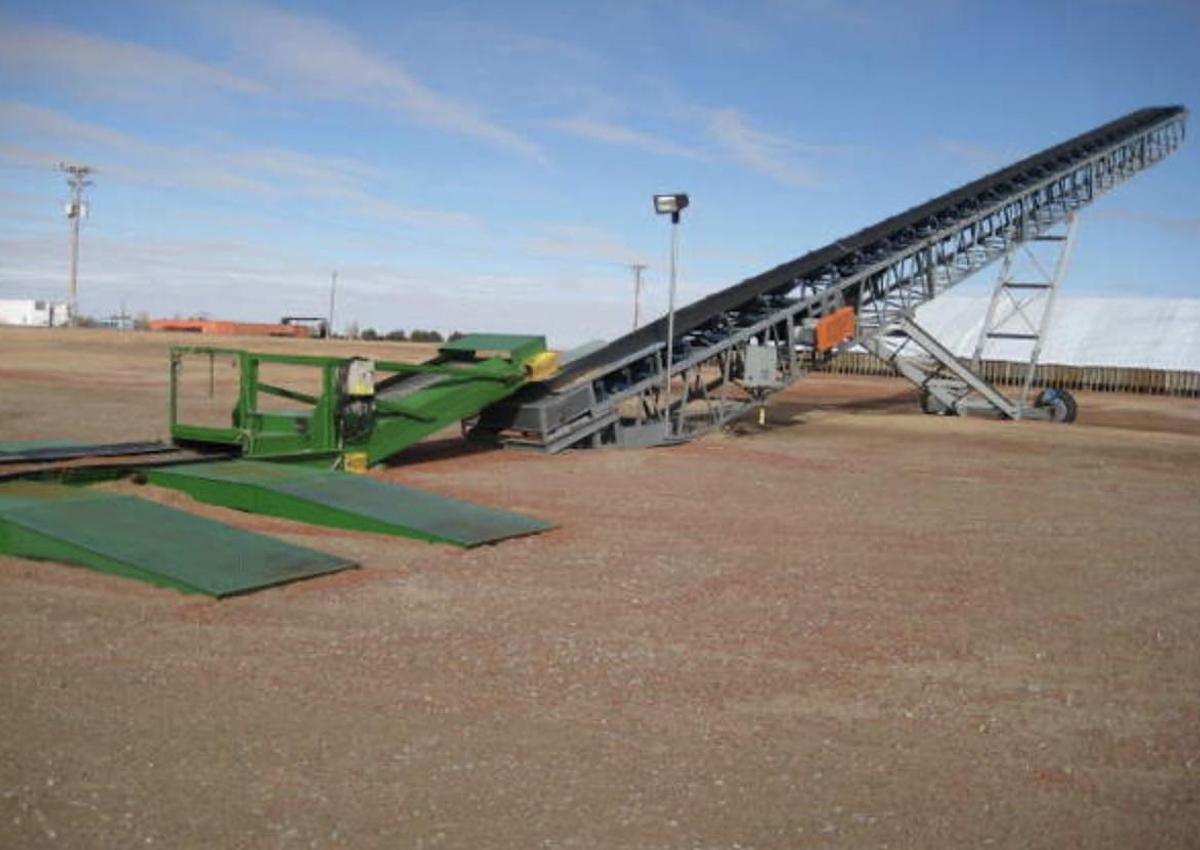

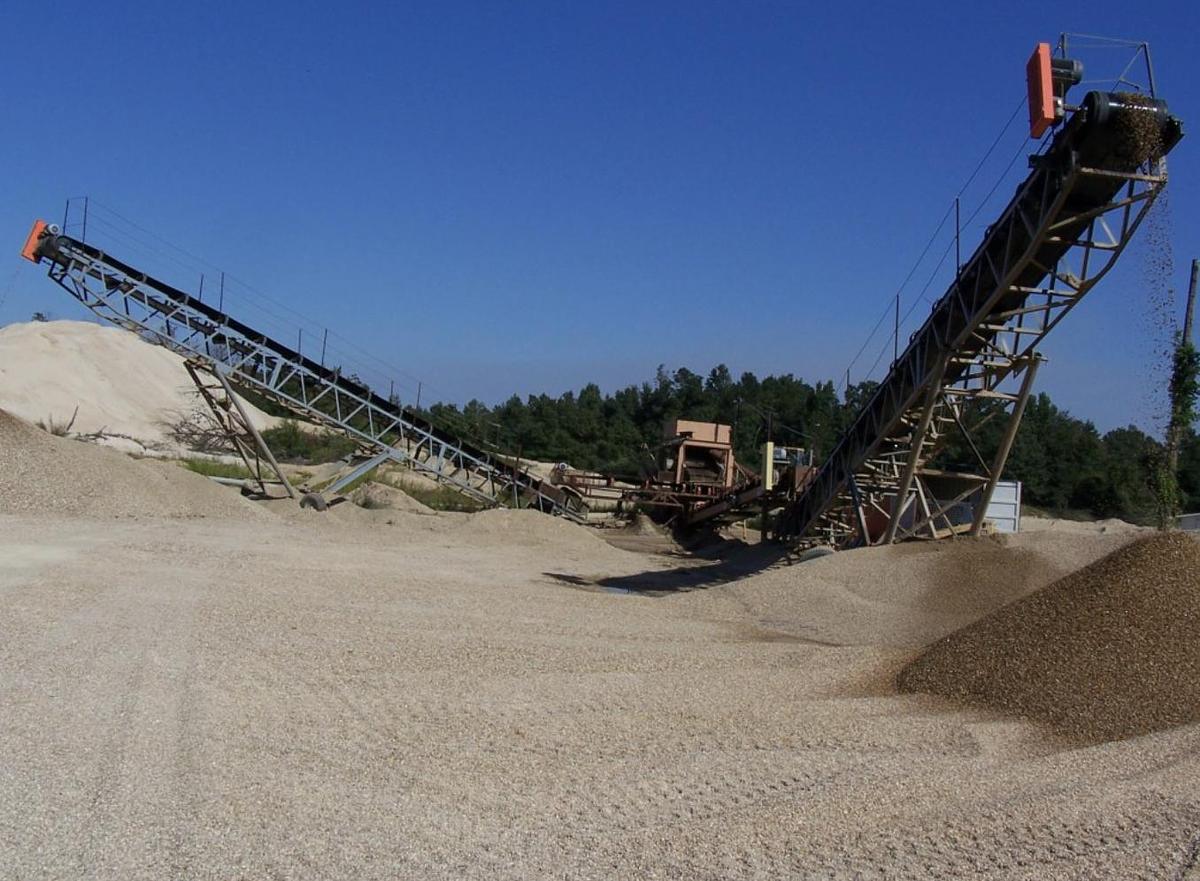

PIT PORTABLE RADIAL STACKER (Multiple Sizes Available)

Example: 30" x 75'

·      36” Deep Truss, 3x4x5/16 Cord Angle, 2x2x1/4 Lattice

·      Heavy Duty Undercarriage, 10x10 Tubing Axle, 20” Tires & Rims (USED)

·      Lagged head 16” Dia., 2 15/16” Shaft & Roller Bearings

·      14” Winged Tail, 2 15/16” Shaft & Roller Bearings w/Screw Take-ups

·      World Wide #5-15 Drive, Motor Mount, Belt Guard

·      20 hp, TEFC, 1800 RPM, 230/460 volt

·      Pioneer, 5” x 35 deg., CEMA C Top Rollers on 48” Centers

·      Pioneer, 5” Returns w/Brackets, 10’ Centers

·      Belt, 2 Ply, 220 PIW, 3/16 x 1/16 cover

·      48” Receiving Hopper w Skirt Rubber

·      Pivot Plate, Tow Hook, weight box (weight not included)

·      Tail Guard

·      Primed & Painted, Tool Steel Gray

Add-Ons / Options:

• Power Travel
• Backstop
• 12" Load Zone Extensions
• 3Ply Belt - 3/16 x 1/16 Cover
• Catwalk With Wrap Around Head Platform
• Belt Scraper
• Grease Hoses - 2ea - 75ft ea
• CCC-RS-2 Safety Switch, Cable & Eyes
• World Wide 20HP Motor Starter - WCSRC-SPX-032A-4+JKOZ
• World Wide 2 HP Reversing Starter - WCSRC-SPX-007A-4+Z (PTRS)

Notes:

• 300 tph @ 110 pcf
