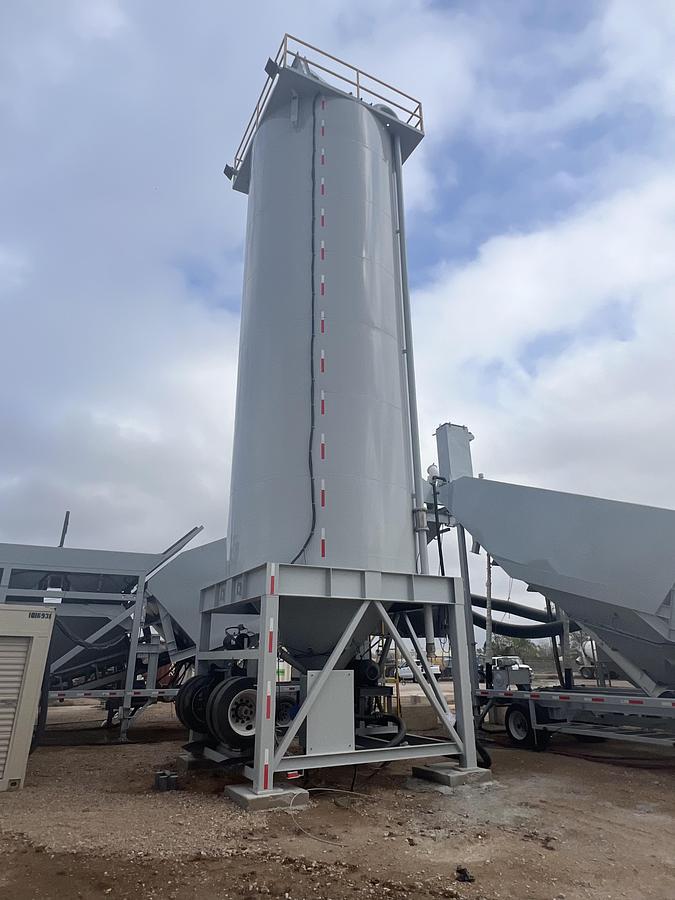

2026 R&S 1012 Bbl Vertical Pig with 50HP PLC Fast Air Transfer System

1012 Bbl Vertical Pig Specifications:

• Upper frame section is all welded, heavy duty, tubular steel.
• Square roof that increases the available square footage by 22% with full safety handrails, toe boards and a safety ladder with climbers device.
• Pressure relief valve.
• 20” inspection manhole.
•  5” pneumatic fill line with cam lock fitting and cap.
• High bin level indicator with warning light.
• Low bin level indicator with warning light.
• 50 degree cone for improved material flow with a complete aeration system.
• Emergency slide gate.
•  5” clean out port.

Air Specifications:

• A weather tight NEMA enclosure for silo solenoids.
• All solenoids are plumbed in and exhaust lines routed out of the enclosure. Each valve is equipped with a “Quick” cut-off to allow the customer isolation of the individual valves for easy maintenance.
• Complete aeration system with full size air pads, solenoid and required plumbing. Aeration components are replaceable from the outside.
• Air system comes with a ¾” oversized air filter, regulator and lubricator.
• Air supply by customer.

Electrical Specifications:

• Wiring from the solenoid valves to a NEMA 4 enclosed power panel located on the frame is factory installed.
• Most wiring is in conduit.
• All equipment is wired and tested prior to shipment.

General Specifications:

• All equipment is treated with a zinc primer and painted with polyester polyurethane paint.

Single Transportation System

• A single axle with (4) 255/70R22.5 wheels and tires.
•  Air brakes and lights.

5” Anti-Overfill System  w/Slave Valve

• Prevents accidental overfilling of the silo. For use with a high-level bin indicator.
• Signal from the bin indicator will set off a control panel alarm, a red strobe light and horn.

50hp PLC Fast Air Transfer System (20-28 TPH)

• 15 PSI pressure rating and check valve setting / 465 CFM air flow / 4” check valve
• Includes a Gardner Denver Direct Drive Machinery blower
• Inlet filter and discharge silencer package
• Lubricant level gauge
• Discharge check and pressure relief valves w/pressure gauge
• Smoot rotary vane feeder is an FT-14 heavy-duty cast-iron air lock feeder with an 8 bladed open end rotor, chrome coated housing interior and end plates.
• Cavity air purge system for improved wear and extended life.
• Includes an adjustable slide gate with hand wheel.
• Blow-thru drop out box with 4” air inlet and 4” material discharge.
• Bin adapter
• 4” x 14’ hose assembly with cam lock ends.
• Air compressor furnished by customer.
• 480v electrical PLC control system with timers to automatically cycle on and off as required by level indicators on the silo. Variable speed transducer for automatic material flow, based on air pressure.

PJC-425 Silo Top Dust Collector

• Pulse jet type collector rated at 2,400 C.F.M. with a 99.99 percent cleaning efficiency.
• One compartment with (12) 8”x 39” cartridges for 472 sq. ft. filtration area.
• (2) 1” Asco solenoid valves, an inline filter and regulator, requires 90 – 100 PSI of clean dry air.
• Hinged top entry for easy entry into the system.
• Solid state timer controlled reverse air pulse cleaning system.
• Adjustable control panel for duration and cycle times.
• Pre-wired and tested at the factory prior to shipment.
• Requires 90 – 100 PSI of clean dry air.
• Pressure switch to automatically start dust collecting at a preset pressure.
• Minihelic gauge for visual indication of filter media condition.
