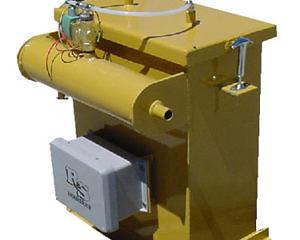

PJC Batcher Dust Collector


PJC (Pulse Jet Cartridge) Batcher Dust Collector:


  • Pulse jet type collector with a 99.99 percent cleaning efficiency.
  • One compartment with top entry cartridges
  • Solid State time controlled reverse air pulse cleaning system.
  • Adjustable control panel for duration and cycle times.
  • Pre-wired and tested at the factory prior to shipment
  • Mounting Flange.
  • Requires 90 – 110 PSI of clean dry air.
  • All equipment is treated with a zinc primer and painted with polyester polyurethane paint.


Remote Mount Package:


  • Hopper bottom to accommodate 6″ flex hose discharge.
  • Mount bracket for customer installation.
  • Discharge angle to batcher must be a minimum of 45 deg. to allow flow back to batcher.
  • Unit to include 10′ of 6″ flex hose and stub for batcher
