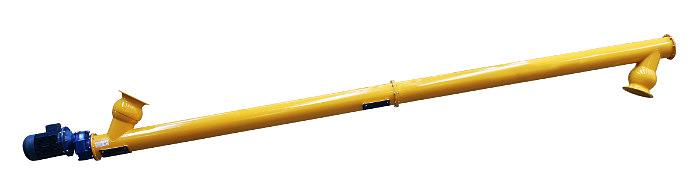

OZB CEMENT SCREW CONVEYOR


SCS & SCRS CEMENT SCREW CONVEYORS FOR CONCRETE BATCHING PLANTS



OZB SCS, SCSR type screw conveyors are specifically designed for transporting cement and similar bulk solids from silos or other storage areas in concrete batching plants.


The unique design of OZB maintenance-free intermediate hanger bearings and end bearing assemblies c/w splined shaft couplings, as well as drive units with incorporated shaft sealing unit and its widely appreciated ball-jointed universal inlets and outlets set new standards in the industry.


Features:

  • Standard High Finish Enamel Paint
  • 5 housing tube diameters: 4″, 6″, 8″, 10″, 12″
  • Housing tube is complete with welded end flanges, inlet, outlet, and inspection hatches at intermediate hanger bearing and inlet locations.
  • Cylindrical, tapered or ball jointed (universal) inlet and outlet with drilled flange or beaded edge or plain according to OZB standards
  • Housing tube sections are modular and come in standard size flanged sections with one made to measure adjusting section
  • Helicoid screw flighting robotically welded on center pipe
  • Space-saving, maintenance-free end bearing assembly with turning tool shaft connection and self-adjusting shaft seal
  • Each auger flighting section has splined couplings
  • Lifting eyes on each tube housing section
  • Standard flange-mounted electric motor on either the inlet or outlet side
  • Direct mounted, single ratio OZB gear reduction unit with incorporated, fully protected, maintenance-free end bearing assembly and self- adjusting packed gland seal
  • Heavy duty, cast, self-lubricating intermediate hanger bearings


Benefits:

  • Maintenance-free
  • Modular design, splined shaft couplings, and universal inlet and outlet make for quick installation
  • Cost effective
  • Motor and gearbox are interchangeable with on-the-shelf products
  • Durability and long life


Options:

  • Different types of standard inlet and outlet designs
  • Additional inspection hatches
  • External housing supports
  • Motor and gearbox at either inlet or outlet side
  • Various motor and gearbox combinations for different feed rates
  • CEMA V finish available
