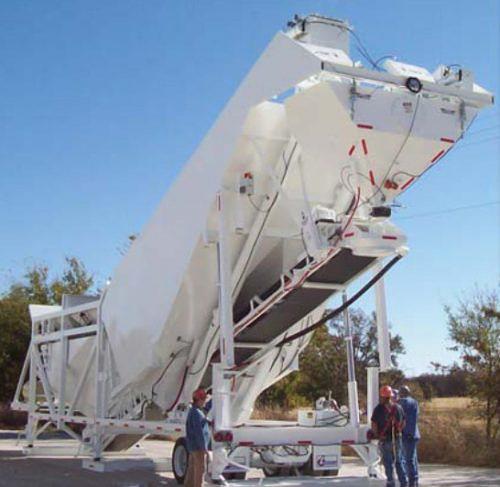

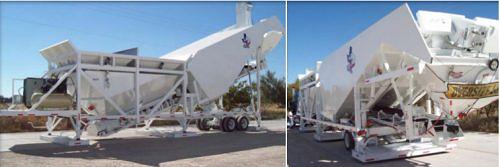

LIDDELL INDUSTRIES CONCRETE BATCH PLANTS - DAKOTA 12 SELF-ERECTING PORTABLE BATCH PLANT



Click on the following link to view video: Dakota 12 Self Erecting Batch Plant

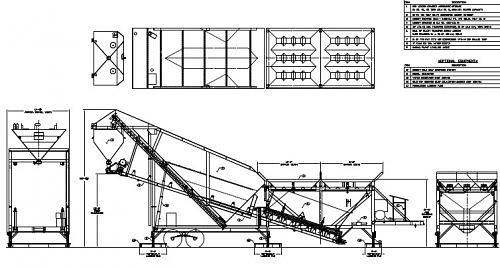

Dakota 12 Specifications and Options





(2) 28.0 Ton Overhead Aggregate Bins — up to four (4) overhead aggregate bins

• Adjustable Landing Pads

• 12 Cubic Yard Aggregate Batcher

• 30” x 15 H.P. Aggregate Transfer Conveyor

• 59.0 Ton Cement Silo

• 12 Cubic Yard Cement Batcher

• 10 H.P. 120 Gallon Air Compressor

• 3” Metered Water System—“Turbine Type”

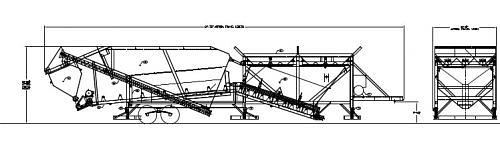

• Dual Axle Transportation System

• Theoretical maximum capacity 160.0 CY Per hour

• Base Unit, Movable with with one truck— for fast job-site setup

• 12’-6” aggregate bin charging height

• 13’-6” base plant discharge height from ground level.

• Can be equipped with many options for most applications.


Single Aggregate Section Lubrication Point



All lubrication points on aggregate section can be piped to one location for easy, one-stop lubrication of all aggregate gates and the tail of the conveyor. All points are easily identified and located.

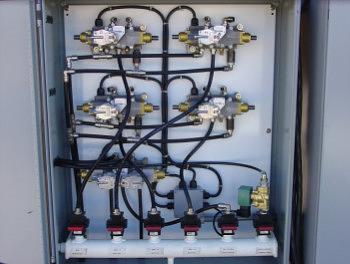

Centralized Air Panel

All solenoid valves are mounted in a NEMA enclosure with all the air inlet lines piped into the box and the exhaust air is pipe out of the box. Each valve is equipped with a “quick” shut off valve to enable customer to isolate the solenoids for fast and safe change out.

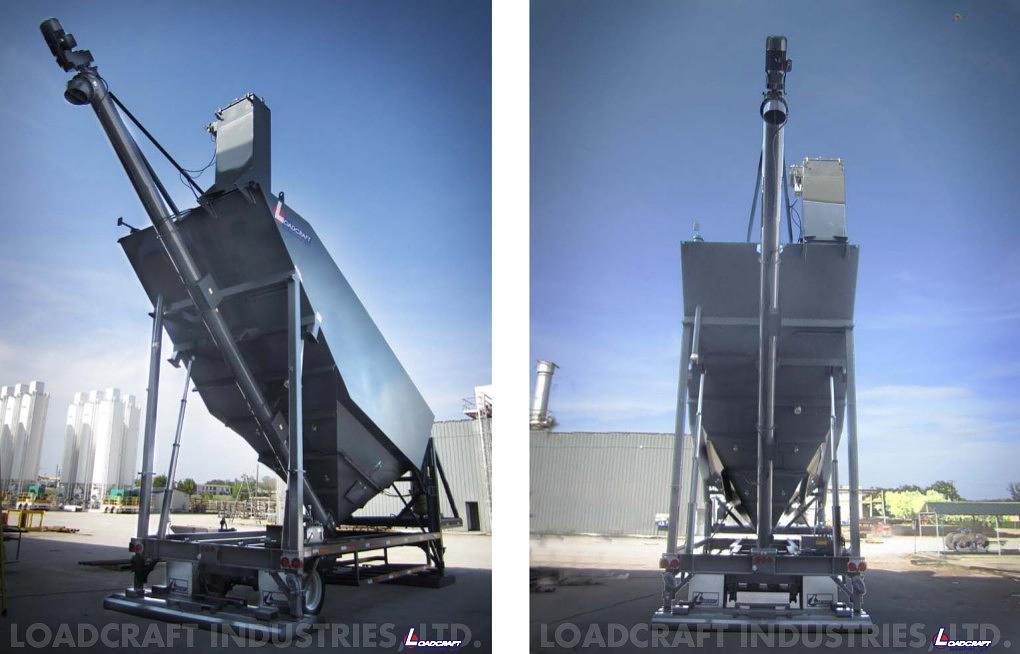

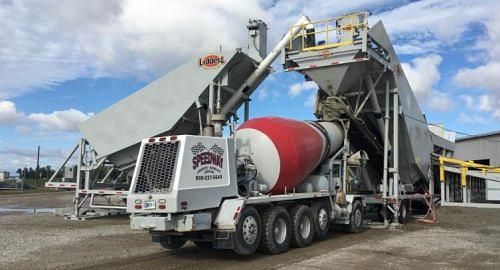

Optional Self-Erecting Dakota Cement Silo



Dakota Brochure
