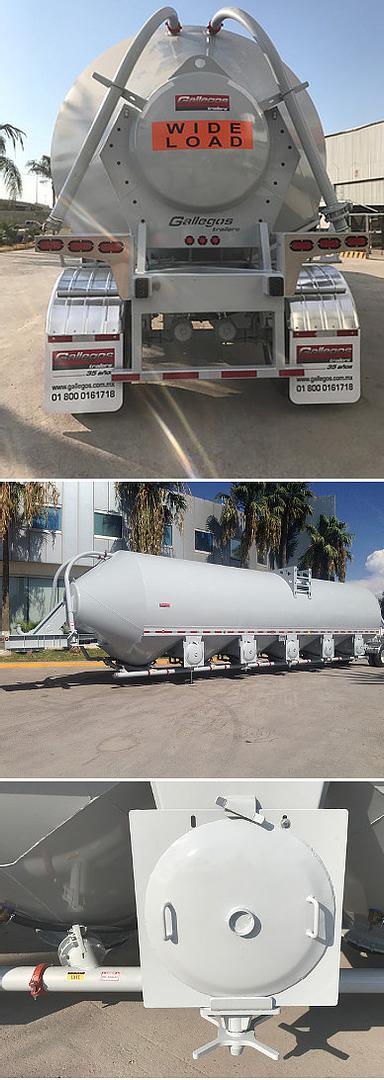

GALLEGOS HORIZONTAL CEMENT GUPPY/PIG


Pneumatic Pressurized Tow-Behind Horizontal Silo:


  • Capacity: 116M3, 4100 CF
  • Dimensions: 57′ Long, 13.5″ high and 11′ wide
  • Body: Black Steel 1/4″ thick w/inside reinforcing rings
  • Chassis: 1/4″ Plate Designed To Operate At: 15 PSI
  • Pneumatic Test: 30 PSI
  • 5th Wheel Plate: A-36 3/8 bolted
  • Discharge Cones: (6) Six with 1 Solimar Fluidizer Pad on each lid. Each Solimar pad is 30″ metal disc with Fluidizers.
  • Landing Gear: 5 sets of Screw Jack Legs & Wide Feet
  • Victaulic Clamps: On each pipe section for easier maintenance
  • Conspicuity Tape: 2″ Grote, DOT Approved
  • Anti-Corrosion Primer: By Dupont Sandblasted: 10,000 MICS, SQI
  • Paint In The Whole Unit: Dupont Imron 5000, Color: Gray
  • Mud Flaps: Gallegos
  • Loading System Lines: (2) rear line (4″), (2) front line (4″)
  • Suspension: Hutch Spring Suspension H9700S
  • Axles: (1) One 30,000 lbs Unimont, 77.5
  • Double Booster: Haldex Gold seal break chambers
  • Auto Slack Adjustment: Haldex S-ABA self testing
  • ABS System: One axle
  • Laser Wheel Alignment: Done at plant before ships
  • Domes: (1) – 20 Knappco with steel neck and aluminum cover w/6 ears for airtight closing
  • Lights: LED Grate, DOT approved
  • Discharge Pipe: 5″ W 6 butterlfy 6″ valves
  • Rear Ladder: Black Steel 10 GA with anti-skid plate
  • Fenders: Aluminum for one axle in rear
  • Pressure Gauges: (2) separate check air pressure lines and body
  • Air Pressure Relief Valves: (3) Sure Seal , 1 on air supply lines, 1 on body, 1 in dome
  • Air Supply Lines: 4″ w/Alminum quick connectors, 4″ check valve, 4″ auxiliary connector and 4″ control butterfly valve
  • Wheels and Tires: (4) Steel white painted & (4) Triangle 11R 24.5 1
  • Blower Options:
  • Electric
  • Diesel
