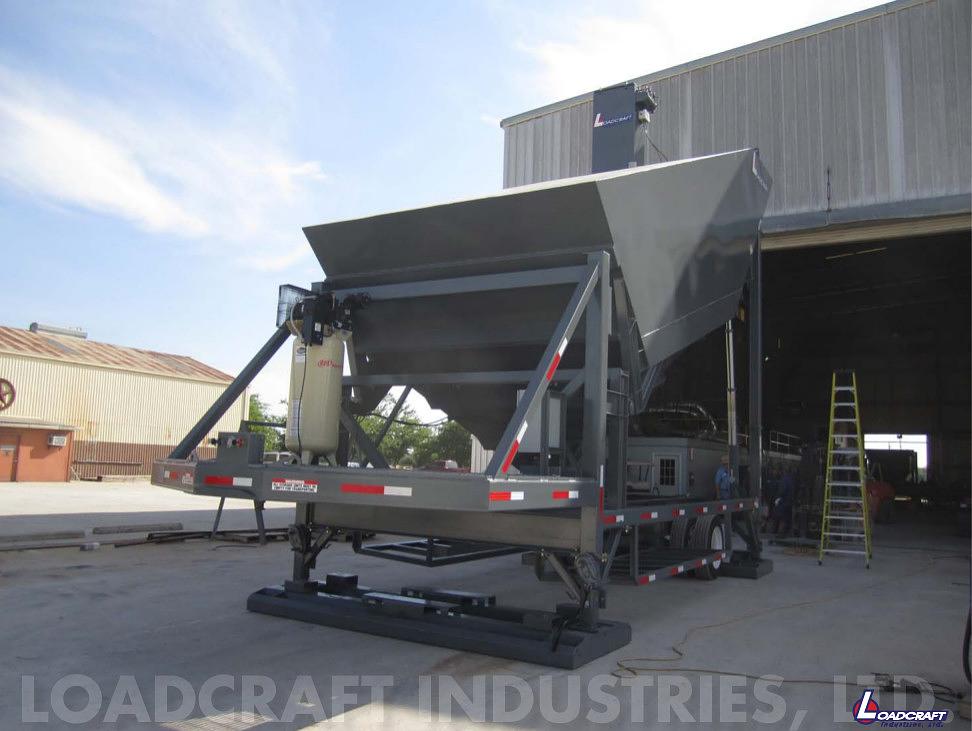

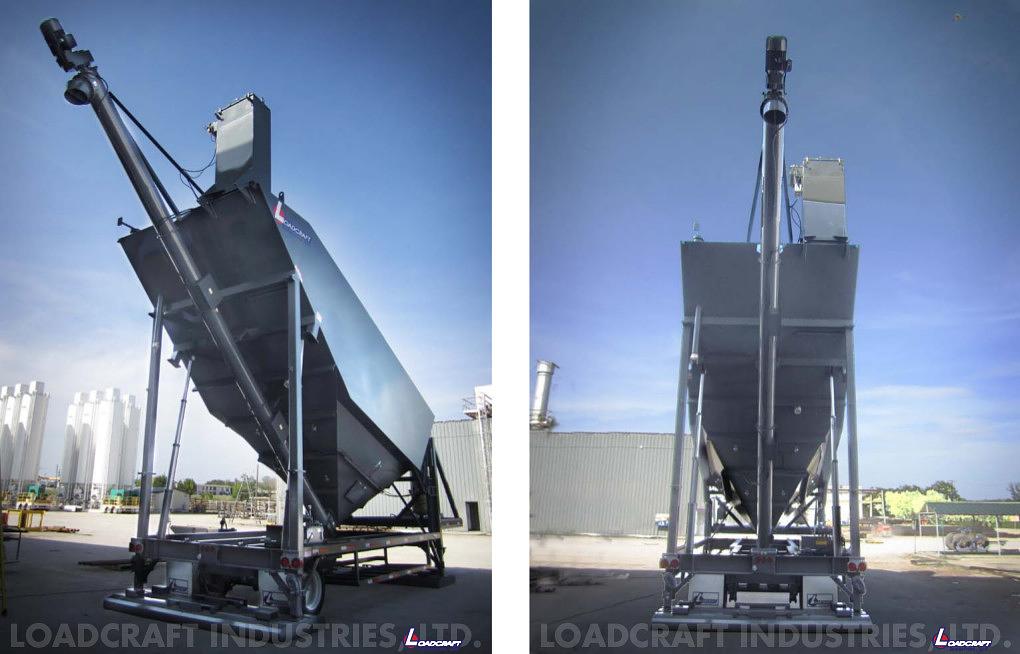

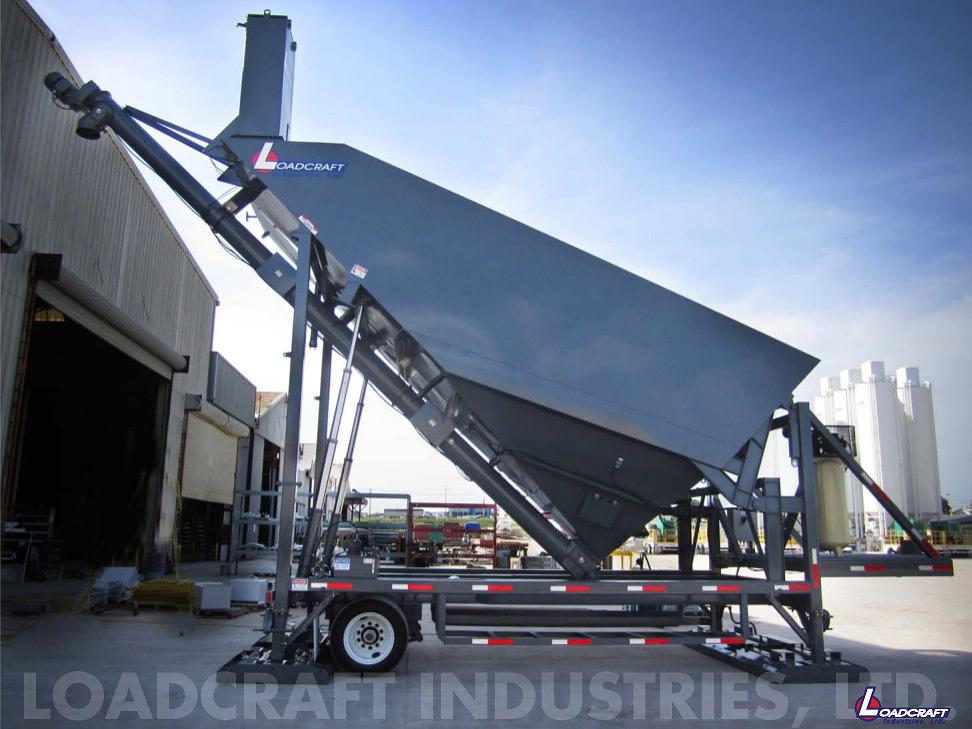

LIDDELL INDUSTRIES CONCRETE BATCH PLANTS - DAKOTA SELF-ERECTING PORTABLE SILO










Specifications:


Dakota Mobile Silo:


  • Silo capacity – 1715 cu.ft/64.0 Tons/428 BBL at MBD of 74lb/cu.ft
  • (1) pressure relief valve.
  • (1) 20” access manhole with bolt-on cover.
  • (1) 4” pneumatic fill line with cam lock fitting and cap.
  • Complete aeration system with full size air pads, solenoid and required plumbing. Aeration components are replaceable from the outside.
  • Emergency slide gate for access to silo screw conveyor.


12” Diameter Cement Screw Conveyor:


  • Screw conveyor travels with the silo.
  • 30 H.P. “Dodge” drive system for transfer of cement.
  • Screw conveyor is rated at 4800 cubic feet per hour at 225 RPM.
  • Approximate discharge height of 24’-0”


PJC-305/54 Silo Top Dust Collector:


  • Pulse jet type collector, rated at 1,700 C.F.M. with a 99.99 percent cleaning efficiency.
  • One compartment with (6) 8” x 54” top entry cartridges for 305 square feet of filtration area.
  • (2) ¾” Asco solenoid valve and an in line filter and regulator.
  • Folds down for travel. Travels on the silo.
  • Hinged top entry for easy entry into the system.
  • Solid state timer controlled reverse air pulse cleaning system.
  • Adjustable control panel for duration and cycle times.
  • Pre-wired and tested at the factory prior to shipment.
  • Requires 90 – 100 PSI of clean dry air.

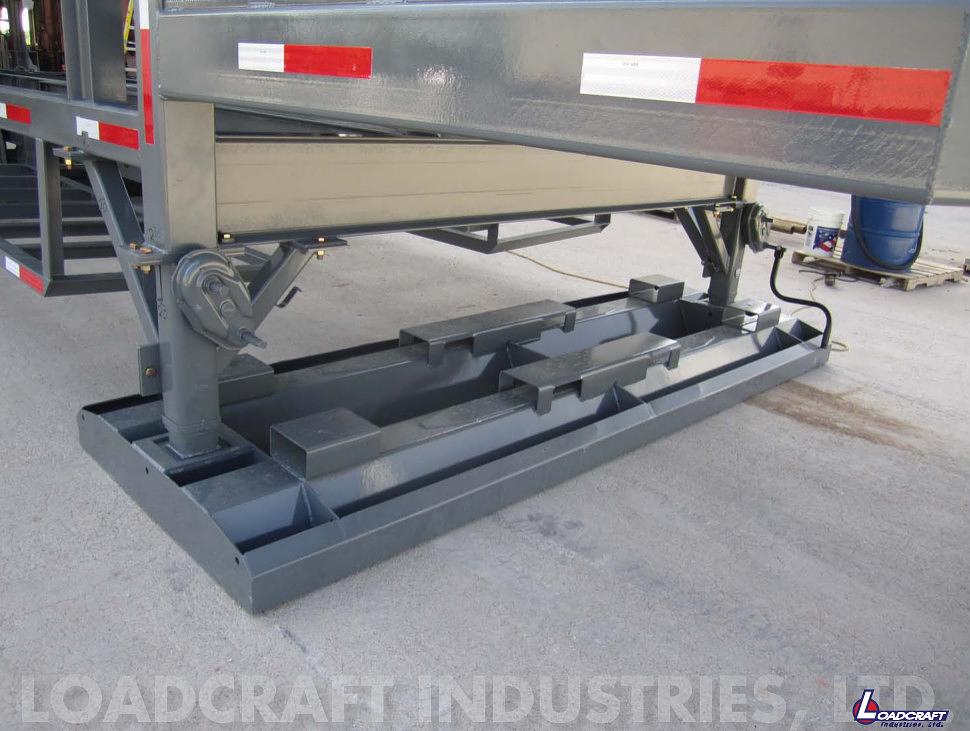

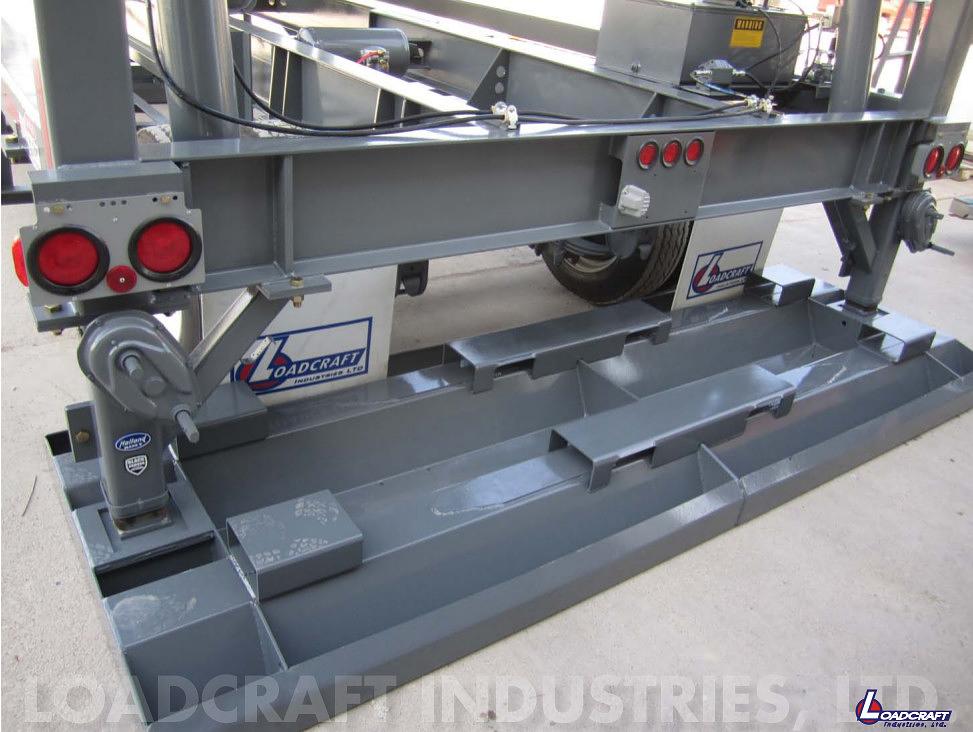

Dakota Mobile Silo – Transportation System:


  • Single axle system.
  • (4) wheels and tires.
  • Air brakes, king pin, fifth wheel rub plate and travel lights.


Dakota Mobile Silo – Electrical Specifications:


  • Wiring from the solenoid valves to a NEMA 12 enclosed panel located on the fifth wheel access platform for easy access, is factory installed.
  • The main fused disconnect and motor starters with thermal overload protection are wired to each motor.
  • All equipment is wired and tested prior to shipment.
