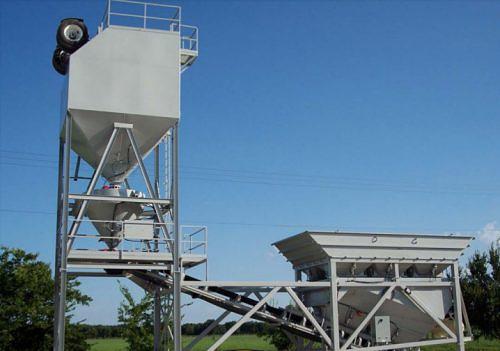

LIDDELL INDUSTRIES CONCRETE BATCH PLANTS - APACHE SQP PORTABLE CONCRETE BATCH PLANT





General Specifications:


  • Capacity of 200 yds per hour.
  • All the air piping is factory installed.

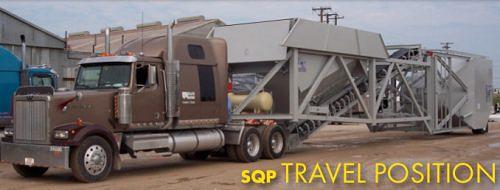

  • This plant is a complete plant on a single axle and moves by one tandem axle truck-tractor.
  • All the batching controls are electric-over-air manual.


Aggregate Section:


  • Aggegate support frame and intermediate frame are all welded, heavy duty tubular steel.
  • Three hinged compartment overhead storage, heaped capacity of 47.6 cu.yds. or 64.3 tons.
  • 12 cu.yd. aggregate weigh batcher.


Transportation Section:


  • Single Axle 8.25 x 22.5 dual wheels & air brakes
  • 30″ x 40′-0″ Aggregate Transfer Conveyor
  • 15 HP drive with reducer


Cement Section:


  • Silo capacity — 1541 cu.ft./57.0 Tons/385 Max BBL (based on cement weight of 74lb per cu.ft.)
  • 12 cu.yd cement batcher
  • Round construction for improved material flow

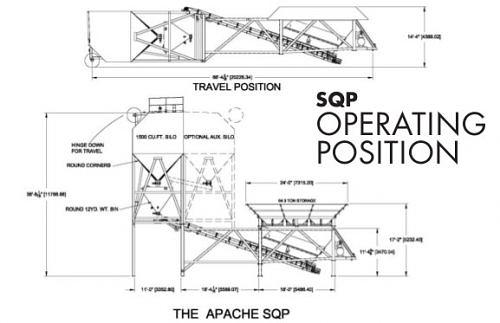

Plant Dimensions:


  • Overall length, operating position – 48′-0″
  • Travel length – 68′-2″
  • Travel Height – 14′-4″
  • Travel Width – 11′-0″
  • Weight (approximate) – 43,000 lbs
  • Overhead bin charging height – 17′-2″
  • Discharge Height – 12′-6″


Air & Water:


  • 10hp/120 gallon air compressor, complete from air compressor to all pneumatic plant equipment.
  • 3″ Turbine water meter, complete piping to discharge head


Electrical:


  • Wiring from the solenoid valves to a NEMA 12 enclosed power panel located on the aggregate frame.
  • The main disconnect and motor starters are wired to each other.
  • All equipment is wired and tested before shipment.


Standard Options:


  • Aggregate Compartment Storage Scoreboard — “Scoreboard” with all the aggregate bin indication lights located in one central location.
  • Auxiliary Silo Package — Utilizes intermediate frame section of the Apache SQP.
  • Cement Silo Safety Deck — Safety Deck at cement batcher level.
  • Bin Level Indicators — Monitoring capabilities for high and low levels for cement or aggregate levels.
  • Anti-Overfill System — Prevents accidental overfill of silo, used in conjunction with bin level indicators.
  • 15 hp Compressor Upgrade — In lieu of standard 1ohp/120 gallon air compressor.
  • Single Aggregate Section Lubrication Point — All lubrication points on aggregate section can be piped to one location for easy, one-stop lubrication of all aggregate gates and the tail of the conveyor.
  • Aggregate Bin Heap Plates — Add @ 20 cu.yd. of storage and help prevent cross contamination.
  • Transportation system upgrade — Double axle transportation system with suspension.
  • Aggregate Storage Extension — 4′ and 8′ aggregate storage extensions.

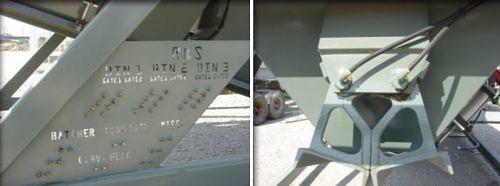

Single Aggregate Section Lubrication Point



All lubrication points on aggregate section can be piped to one location for easy, one-stop lubrication of all aggregate gates and the tail of the conveyor. All points are easily identified and located.

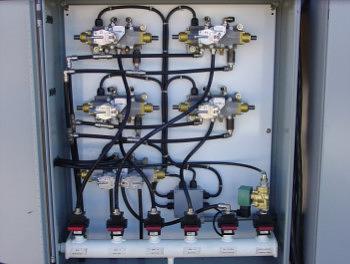

Centralized Air Panel


All solenoid valves are mounted in a NEMA enclosure with all the air inlet lines piped into the box and the exhaust air is pipe out of the box. Each valve is equipped with a “quick” shut off valve to enable customer to isolate the solenoids for fast and safe change out.
