2025 WAM SiloTop Zero Dust Collector/Vent

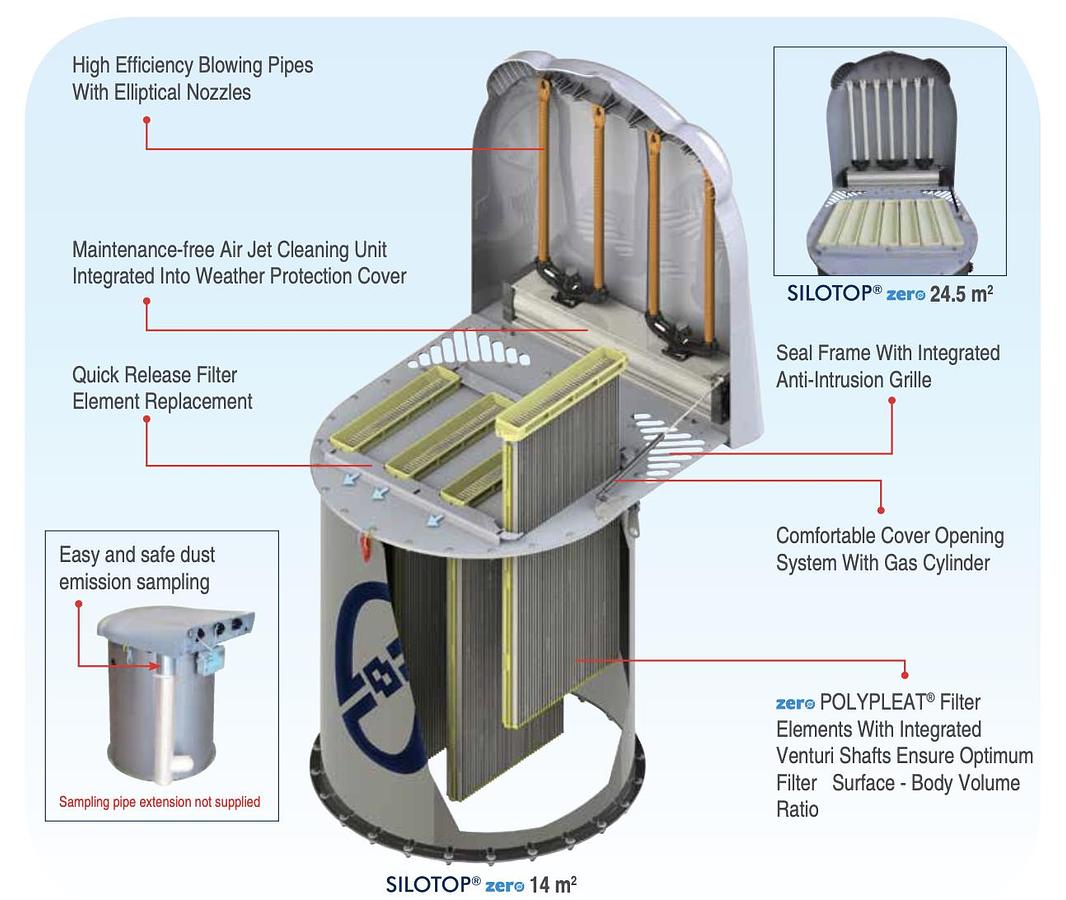

Function

Dust separated from the air flow by special filter elements drops back into the silo after an integrated automatic compressed air pulse-jet cleaning system has removed it from the filter media.

Air filtration capacity has been increased through innovative high-performance filter media, which requires less filter surface area.This results in a lower pressure drop and dust emission of less than 1 mg/Nm³ for concrete batching plant application.

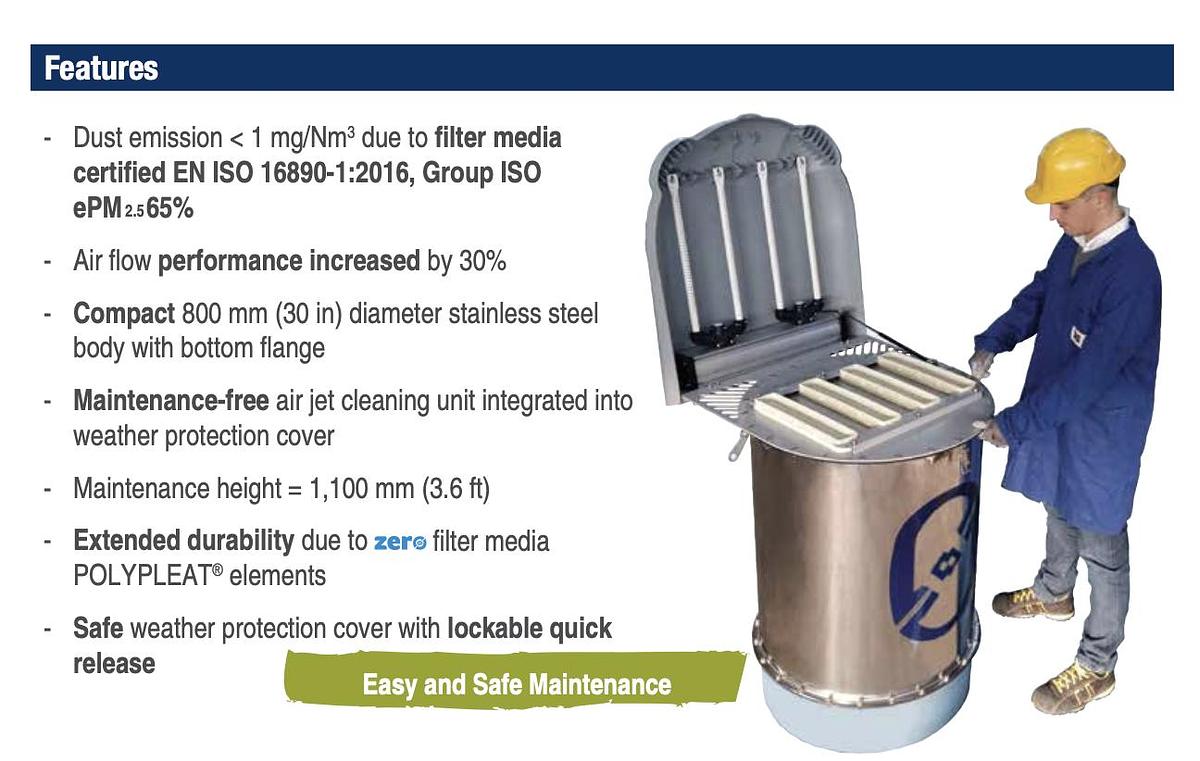

Features

• Filter surface: 14 m² (150 sq ft)
• Air volume: up to 1,500 Nm3/h (880 cfm)
• Filter elements: POLYPLEAT
• Compressed air pulse-jet cleaning at 4 ~ 6 bar (58 ~ 87 PSI)
• Dust temperature range -20 ~ 80 °C (-4 ~ 176 °F)
• Cylindrical stainless-steel casing with bottom flange
• Maintenance height ≤ 1,100 mm (3.6 ft)
• High filtration efficiency due to NANOFIBER filter media
• Maintenance-free compressed air pulse-jet cleaning unit integrated into hinged weather protection cover
• Safe weather protection cover with lockable snap lock
• Quick filter element removal

Benefits

• Holding peak flow rates of 1,500 Nm3/h (880 cfm)
• Low air consumption
• Perfect accessibility due to compact design
• Sturdy stainless-steel casing
• Filter element replacement within a few minutes by one person only
• Interchangeable with SILOTOP R03 as a whole
• Worldwide spare parts supply through WAM subsidiaries
• Ex-stock delivery

Options

• 24.5 m2 (264 sq ft) filter surface
• Multi-functional electronic differential pressure meter

Accessories

• Weld-on bottom ring
• Winter protection for solenoid valves
• Emission sampling kit
