Contact us for price

2024 Belgrade 450 Barrel Round Portable Silo

Belgrade, MN

orCall (770) 696-1757



  • 225 sq.ft. Dust Collector
  • 330 sq.ft. Dust Collector
  • Bin Level Indicators
  • Single Phase Motor
  • Hydraulic Drive Motor
  • Motor Starter Controls
  • Remote Motor Starter Controls
  • Manual Air Valve Controls
  • Upgrade to 12" Screw Conveyor
  • 5" Fill Pipe

Additional Round Portable Tilt Up Silo Sizes Available:

  1. Multiple single-compartment, round, portable silos sizes available: 270Brl, 350Brl, 450Brl, 550Brl, 700Brl, 900Brl, 1050Brl, 1200Brl.
  2. Multiple split-compartment, round, portable silo sizes available: 500Brl, 700Brl, 850Brl.


Model450 Barrel Round Portable Silo
Stock Number00209

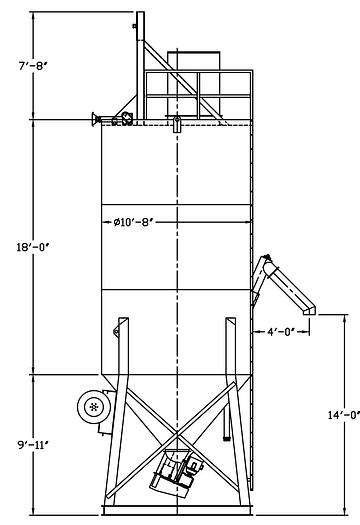

Overall Length10'-8" Diameter x 35'-7" Overall Height
Auger SystemPositive Feed Drive
Auger Dimensions10" Diameter Screw x 17'-0"
Drive System10 HP Motor 3Ph and Gear Box Drive
ConstructionHeavy Duty Dual Axle Trailer and Tires
Transportation PackageFifth Wheel Assembly with 10,000# Spring Axle, w/Air Brakes and Light Package
Dust Collection330 sq.ft. Filter Area Pulse Jet Dust Collector
Silo SafetyPressure Relief Valve
Auger Discharge Height14'-0"
OSHA ComplianceOutside Ladder with OSHA Compliant Fall Arrest Cable System
Fill Pipe4" Pipe w/ Aluminum Adapter
Inspection18" Non-Pressurized Inspection Manhole
AerationSolimar Vibratory Discs
ExteriorSandblast, Prime and Paint Standard Colors
Standard Paint ColorsRAL 7038 Gray, RAL 9010 White, RAL 1001 Tan, RAL 1032 Yellow
Empty Weight12,800 #
Hitch Weight4,900 #
Capacity1,800 cu.ft.
Cement Capacity85 Ton Capacity (Cement)
Output CapacityApprox. 15 cu.ft. per minute (9" Screw Conveyor)
